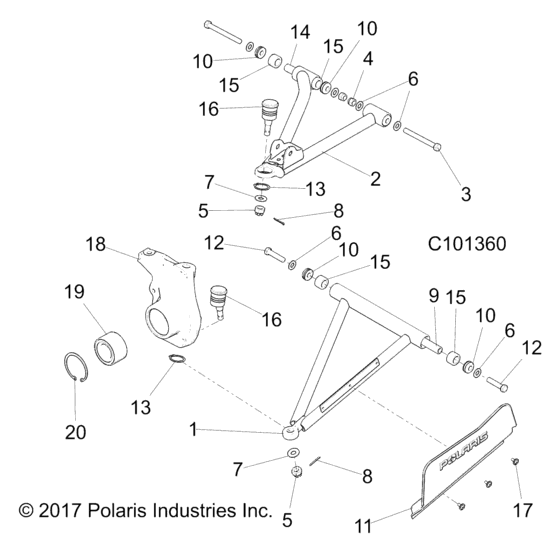

Suspension, Front (A18SJS57CU (C101360)) Diagram Polaris SPORTSMAN TOURING 570 EPS TRACTOR SP

Model code
A18SJS57CU
Year
2018

Difficulties in parts search?

Parts list
Suspension, Front

Difficulties in parts search?

Suspension, Front
Description OEM Part # Price
1
1

1023304-458

Weld-Lca,s,front,lh,m.blk

1023304-458

US $80.34

1
1

1023305-458

Weld-Lca,s,front,rh,m.blk

1023305-458

US $74.97

2
2

1023242-458

Weld-Uca,s,front,lh,m.blk

1023242-458

US $91.37

2
2

1023243-458

Weld-Uca,s,front,rh,m.blk

1023243-458

US $92.94

3
3

7515472

Bolt

7515472

US $6.56

4
4

7542439

Nut,nylok(10)

7542439

US $1.96

5
5

7547336

Nut-m12x1,5,castle-olive d

7547336

US $9.85

6
6

7556153

Washer,3/8 fw

7556153

US $32.70

7
7

7556212

Washer-7/16 sae,stf,thru-hrd-y

7556212

US $10.83

8
8

7661203

Pin,cotter(10)

7661203

US $26.30

9
9

5141329

Shaft-A-Arm,sealed,c-Bore

5141329

US $38.85

10
10

1543611

ASM-PIVOT CAP,SEALED,M

1543611

US $3.15

11
11

5435028-070

Shield-cv,front,basic,lh,blk

5435028-070

US $19.30

11
11

5435029-070

Shield-cv,front,basic,rh,blk

5435029-070

US $19.30

12
12

7520340

SCR-3/8-24X1 3/4,HX,GR5,P30,Y

7520340

US $2.63

13
13

7710533

Ring-retainer,external,1,188

7710533

US $5.25

14
14

5141292

Shaft-Pivot,short,m10,43Mm

5141292

US $1.42

15
15

5452233

BUSHING-STANDARD,SUSP,M

5452233

US $1.96

16
16

7061230

BALL-JOINT,M12X1.50,TAPERED

7061230

US $76.79

17
17

7512084

Screw(10)

7512084

US $19.60

18
18

1824434

ASM-STEERING,KNUCKLE,LH

INCL., KNUCKLE, 19, 20

1824434

US $341.50

18
18

5139686

KNUCKLE-STEERING,MACH,LH

5139686

US $67.13

18
18

1824435

ASM-STEERING,KNUCKLE,RH

INCL., KNUCKLE, 19, 20

1824435

US $329.70

18
18

5139687

KNUCKLE-STEERING,MACH,RH

5139687

US $194.97

19
19

3514634

Bearing-wheel, 35x64x37mm

Analog Koyo DAC3564A1CS31

3514634

US $54.15

20
20

7710507

RING,RET.,2.500 INTERNAL

7710507

US $3.94
