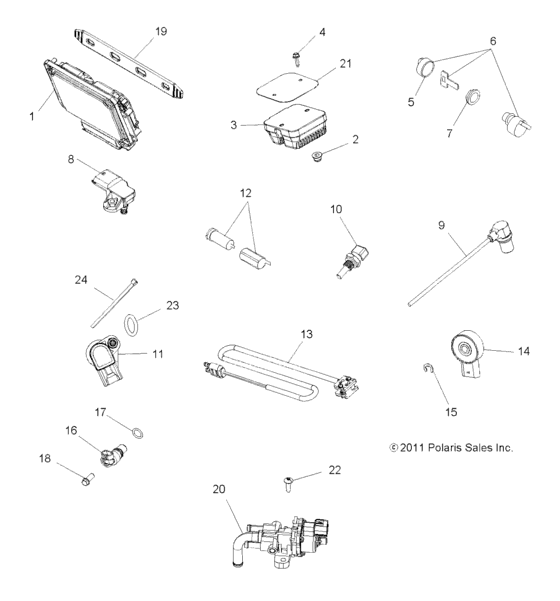

Electrical, Switches, Sensors, Ecu And Control Modules (A12DN8EAF/EAH/EAR/EAW (49ATVSWITCHES12SPTRGEPS850)) Diagram Polaris SPORTSMAN TOURING 850 EPS
- Model code
- A12DN8EAF/EAH/EAR/EAW
- Year
- 2012
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4012616 Ecm-prog,sportsman 850,sm |
4012616 |
US $751.07 |
||
|
2
|
2
7547274 Nut-m6 flange,nylok |
7547274 |
US $3.94 |
||
|
3
|
3
4012678 Reg-voltage,600 watt,ring |
4012678 |
US $351.89 |
||
|
4
|
4
7519202 Screw, flange |
7519202 |
US $6.56 |
||
|
5
|
5
5433534 Key cover-keyswitch |
5433534 |
US $19.69 |
||
|
6
|
6
4012165 Switch-key,3 pos,mt slvIncl. 5 |
4012165 |
US $125.49 |
||
|
7
|
7
5433733 Nut,ignition switch |
5433733 |
US $14.09 |
||
|
8
|
8
7518548
Scr-m6x16,hxflg,0600214
|
7518548 |
— | ||
|
8
|
8
2411528 Sensor-tmap dss3-tf |
2411528 |
US $115.45 |
||
|
9
|
9
2411589 Sensor-crank position |
2411589 |
US $93.52 |
||
|
10
|
10
4010644 Sensor-thermister |
4010644 |
US $88.57 |
||
|
11
|
11
2205360 KIT-TPSIncl. TPS Sensor, Sleeve Holder, Repair Harness, O-Ring, Cable Ties |
2205360 |
US $223.56 |
||
|
12
|
12
4010638 Receptacle-pod mnt,12 volt |
4010638 |
US $15.26 |
||
|
13
|
13
2202794 Kit-brake light swtch 98-16756 |
2202794 |
US $64.02 |
||
|
14
|
14
3233835
Switch-rotary,6 pin
Gear Position |
3233835 |
— | ||
| replacement | |||||
|
14
|
14
3236115 SWITCH-ROTARY,6 PINGear Position |
3236115 |
US $130.52 |
||
|
15
|
15
3233834 Ring-retaining |
3233834 |
US $10.01 |
||
|
16
|
16
7670116 Clip,routing,,472 b,d,,hingedFor Use w/Speed Sensor |
7670116 |
US $3.94 |
||
|
16
|
16
4012167
Sensor-speed,trans
|
4012167 |
— | ||
| replacement | |||||
|
16
|
16
4013908 Sensor-speed,trans |
4013908 |
US $103.36 |
||
|
17
|
17
3234302 O-ring, -113 |
3234302 |
US $9.24 |
||
|
18
|
18
3234329
Screw,hexflangehead,m8x1,25x30
|
3234329 |
— | ||
|
19
|
19
5414193 Strap-ecu |
5414193 |
US $18.52 |
||
|
20
|
20
4013313 Valve-iac |
4013313 |
US $248.05 |
||
|
20
|
20
2878507 Kit-harness,iac |
2878507 |
US $146.51 |
||
|
21
|
21
5253294 Cover-voltage regulator |
5253294 |
US $2.85 |
||
|
22
|
22
7519045 Scr-tx truss-#14x3/4,hi/lo zbk |
7519045 |
US $2.63 |
||
|
23
|
23
5411356 O-ring |
5411356 |
US $3.06 |
||
|
24
|
24
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
