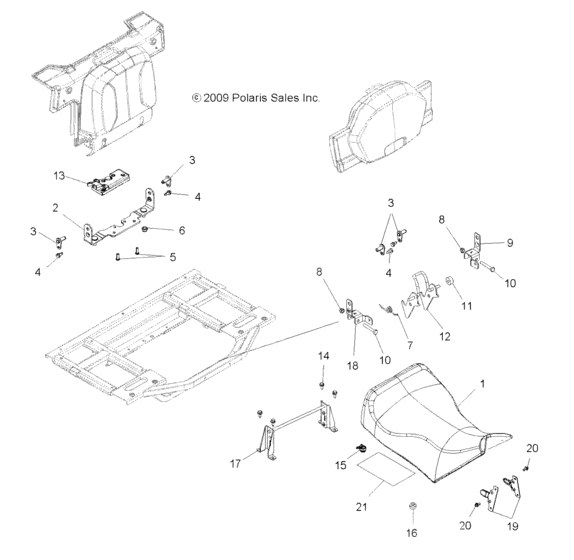

Body, seat, operator (A10TN55AL/AX) Diagram Polaris SPORTSMAN X2 550
- Model code
- A10TN55AL/AX
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2684289-070 Asm-seat,blkIncl. 15,16;Built 3/18/10 and Before; |
2684289-070 |
US $438.25 |
||
|
1
|
1
2684291-070
Covering, seat, black
|
2684291-070 |
— | ||
|
1
|
1
2684703-070
Asm-seat,blk
Incl. 15,16;Built 3/19/10 and After; |
2684703-070 |
— | ||
|
2
|
2
1015414-067 Weld-pivot,pass seat,blk |
1015414-067 |
US $34.67 |
||
|
3
|
3
1015413 Weld-pin,pivot |
1015413 |
US $15.26 |
||
|
4
|
4
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
5
|
5
7515177 Screw |
7515177 |
US $3.94 |
||
|
6
|
6
7542343 Nut,flange |
7542343 |
US $6.56 |
||
|
7
|
7
7041370 Spring, latch |
7041370 |
US $8.17 |
||
|
8
|
8
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
9
|
9
5250563 Bracket-pivot,seat,lh |
5250563 |
US $11.34 |
||
|
10
|
10
7512130 Bolt |
7512130 |
US $2.45 |
||
|
11
|
11
7556091 Spacer |
7556091 |
US $2.45 |
||
|
12
|
12
1016844-067 Weld-rod,passenger seat,blk |
1016844-067 |
US $39.60 |
||
|
13
|
13
7081325 Latch-seat,pass,back |
7081325 |
US $92.16 |
||
|
14
|
14
7518513 Bolt-m6x1,0x15,hxflg,tap/r-od |
7518513 |
US $2.45 |
||
|
15
|
15
5413691 Grommet-seat latch |
5413691 |
US $1.98 |
||
|
16
|
16
5412067 Bumper-rubber |
5412067 |
US $2.98 |
||
|
17
|
17
1016654-067 Weld-lockout,pass,blk |
1016654-067 |
US $51.28 |
||
|
18
|
18
5250564 Bracket-pivot,seat,rh |
5250564 |
US $11.34 |
||
|
19
|
19
5250682 Brkt-seat base,locate |
5250682 |
US $6.60 |
||
|
20
|
20
7519045 Scr-tx truss-#14x3/4,hi/lo zbk |
7519045 |
US $2.63 |
||
|
21
|
21
TBA
Engine
|
TBA |
— |
