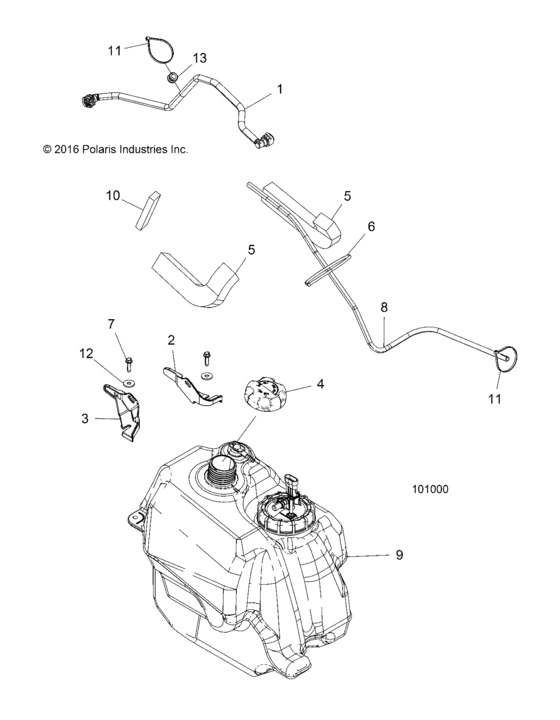

Body, Fuel Tank Asm (A17SWS57C1/C2/E1/E2 (101000)) Diagram Polaris SPORTSMAN X2 570 EPS TRACTOR
- Model code
- A17SWS57C1/C2/E1/E2
- Year
- 2017
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2521663 ASM-FUEL LINE,HARD,TOUR |
2521663 |
US $46.29 |
||
|
2
|
2
5452276 BRKT-SEAT BASE,CAB MNT,PP,LH |
5452276 |
US $3.26 |
||
|
3
|
3
5452277 BRKT-SEAT BASE,CAB MNT,PP,RH |
5452277 |
US $3.26 |
||
|
4
|
4
5439075 Cap-gas tank |
5439075 |
US $19.69 |
||
|
5
|
5
5813255 Foam-seal,1,5 x 12 |
5813255 |
US $10.69 |
||
|
6
|
6
7080761 Cable tie,14" |
7080761 |
US $3.26 |
||
|
7
|
7
7515179 Screw |
7515179 |
US $2.98 |
||
|
8
|
8
8450040-600 Line fuel,1/4 id(600 cm,) |
8450040-600 |
US $65.99 |
||
|
9
|
9
2521741 ASM-FUEL TANK,570,TRG |
2521741 |
US $1,236.87 |
||
|
10
|
10
5813265 Foam-cover |
5813265 |
US $15.82 |
||
|
11
|
11
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
12
|
12
7555960 Washer,flat |
7555960 |
US $5.25 |
||
|
13
|
13
5413317 Grommet-elec shock wire,slit |
5413317 |
US $1.28 |
