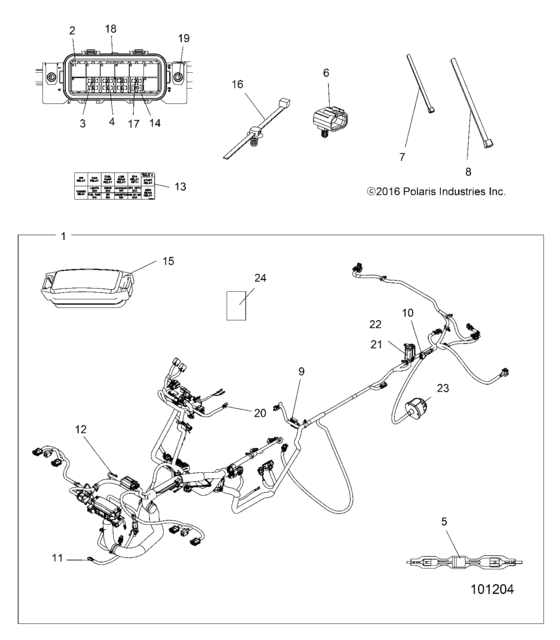

Electrical, Harness (A17SXE95FL (101204)) Diagram Polaris SPORTSMAN XP 1000 EU
- Model code
- A17SXE95FL
- Year
- 2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2413973 Harn-Main,my17 Spmn Etc,trc/eu |
2413973 |
US $945.39 |
||
|
1
|
1
2878496 Kit-harness,engine temp |
2878496 |
US $59.08 |
||
|
1
|
1
2878498 Kit-harness,tps |
2878498 |
US $102.43 |
||
|
2
|
2
4011283 Relay-spst,series 303,sealed |
4011283 |
US $24.61 |
||
|
3
|
3
2434017
Fuse,park,20 amp,(10)
|
2434017 |
— | ||
|
4
|
4
2434016
Fuse,ign,10 amp,(10)
|
2434016 |
— | ||
|
5
|
5
2411035 Diode-6amp,1/4,3/16 term |
2411035 |
US $44.29 |
||
|
6
|
6
4012170
Cover-diagnostic,w/clip
|
4012170 |
— | ||
|
7
|
7
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
8
|
8
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
9
|
9
4014055 Module-resistor |
4014055 |
US $20.28 |
||
|
10
|
10
2410000 Diode-6 amp |
2410000 |
US $19.30 |
||
|
11
|
11
4014891 CONNECTOR-CAP,WINCH CONTACTOR |
4014891 |
US $4.74 |
||
|
12
|
12
2202607 Kit-fusible link,0,8 mm |
2202607 |
US $35.26 |
||
|
12
|
12
2202670 Kit-fusible link,1,0mm |
2202670 |
US $35.26 |
||
|
13
|
13
7186752
Label-Fuse Box
|
7186752 |
— | ||
|
14
|
14
4011372 Breaker-circuit,20 amp |
4011372 |
US $34.46 |
||
|
15
|
15
4015011 COVER-FUSEBOX,48WAY |
4015011 |
US $46.69 |
||
|
16
|
16
7081496
Clip-routing
|
7081496 |
— | ||
|
17
|
17
2434015
Fuse,main,30 amp,(10)
|
2434015 |
— | ||
|
18
|
18
4015457 FUSEBOX-BASE,48 WAY |
4015457 |
US $199.89 |
||
|
19
|
19
7518914
Scr-m6x1x14,pn/tx,tri-lob
|
7518914 |
— | ||
|
20
|
20
4014890 CONNECTOR-CAP,WINCH SWITCH |
4014890 |
US $5.60 |
||
|
21
|
21
4011652
Fuse-5a,mini blade
|
4011652 |
— | ||
|
22
|
22
7186145
Label-Fuse Box
|
7186145 |
— | ||
|
23
|
23
4012558 Connector, 7-way, trailer |
4012558 |
US $31.66 |
||
|
24
|
24
4016237 Switch, K1 Otto, 4 Wires |
4016237 |
US $1.70 |
