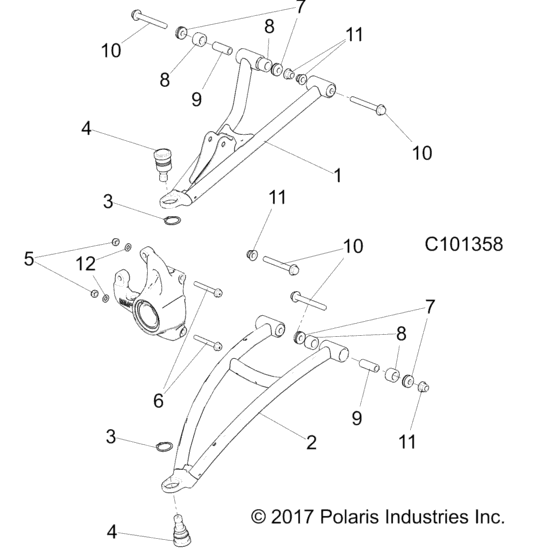

Suspension, Front A (ARMS) Diagram Polaris SPORTSMAN XP 1000 TRACTOR
- Model code
- A18SXS95CC/CR/ER
- Year
- 2018
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1023455-293 Weld-Uca,seal,front,lh,indy RedER |
1023455-293 |
US $77.84 |
||
|
1
|
1
1023456-293 Weld-Uca,seal,front,rh,indyredER |
1023456-293 |
US $77.84 |
||
|
1
|
1
1023455-385 Weld-Uca,seal,front,lh,c.slvrCC |
1023455-385 |
US $81.92 |
||
|
1
|
1
1023456-385 Weld-Uca,seal,front,rh,c.slvrCC |
1023456-385 |
US $81.92 |
||
|
2
|
2
1023371-293 Weld-Lca,front,lh,indy RedER |
1023371-293 |
US $69.63 |
||
|
2
|
2
1023372-293 Weld-Lca,front,rh,indy RedER |
1023372-293 |
US $69.63 |
||
|
2
|
2
1023371-385 Weld-Lca,front,lh,c.slvrCC |
1023371-385 |
US $88.22 |
||
|
2
|
2
1023372-385 Weld-Lca,front,rh,c.slvrCC |
1023372-385 |
US $88.22 |
||
|
3
|
3
7710533 Ring-retainer,external,1,188 |
7710533 |
US $5.25 |
||
|
4
|
4
7061220 BALL-JOINT,8MM,5140 |
7061220 |
US $80.31 |
||
|
5
|
5
7547405 Nut-m8x1,25c10,hx,nyl,din982,z |
7547405 |
US $2.63 |
||
|
6
|
6
7519212 Scr-m8x1.25x65-hx/fl-y,cl 10.9 |
7519212 |
US $2.45 |
||
|
7
|
7
1543611 ASM-PIVOT CAP,SEALED,M |
1543611 |
US $3.15 |
||
|
8
|
8
5452233 BUSHING-STANDARD,SUSP,M |
5452233 |
US $1.96 |
||
|
9
|
9
5141292 Shaft-Pivot,short,m10,43Mm |
5141292 |
US $1.42 |
||
|
10
|
10
7518466 Bolt-m10x1,5x85,hx hd flg |
7518466 |
US $5.25 |
||
|
11
|
11
7547313 Nut-m10x1,5,hxflg, nylon ins |
7547313 |
US $3.94 |
||
|
12
|
12
7556557 Washer |
7556557 |
US $0.79 |
