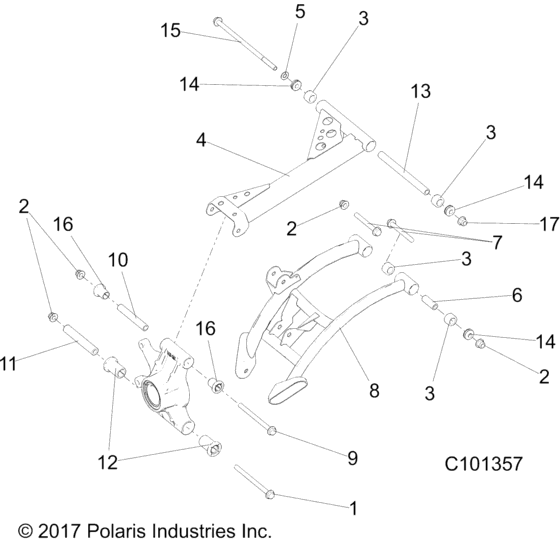

Suspension, Rear (A18SXS95CC/CR/ER (C101357)) Diagram Polaris SPORTSMAN XP 1000 TRACTOR
- Model code
- A18SXS95CC/CR/ER
- Year
- 2018
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518467 Bolt-m10x1,5x140,hxhd,flg |
7518467 |
US $3.94 |
||
|
2
|
2
7547313 Nut-m10x1,5,hxflg, nylon ins |
7547313 |
US $3.94 |
||
|
3
|
3
5452233 BUSHING-STANDARD,SUSP,M |
5452233 |
US $1.96 |
||
|
4
|
4
1023470-293 Weld-Uca,seal,rear,lh,indy RedER |
1023470-293 |
US $66.17 |
||
|
4
|
4
1023471-293 Weld-Uca,seal,rear,rh,indy RedER |
1023471-293 |
US $66.17 |
||
|
4
|
4
1023470-385 Weld-Uca,seal,rear,lh,c.slvrCC |
1023470-385 |
US $71.52 |
||
|
4
|
4
1023471-385 Weld-Uca,seal,rear,rh,c.slvrCC |
1023471-385 |
US $71.52 |
||
|
5
|
5
7556153 Washer,3/8 fw |
7556153 |
US $32.70 |
||
|
6
|
6
5141292 Shaft-Pivot,short,m10,43Mm |
5141292 |
US $1.42 |
||
|
7
|
7
7518466 Bolt-m10x1,5x85,hx hd flg |
7518466 |
US $5.25 |
||
|
8
|
8
1023459-293 Weld-Lca,seal,rear,lh,indy RedER |
1023459-293 |
US $94.52 |
||
|
8
|
8
1023460-293 Weld-Lca,seal,rear,rh,indy RedER |
1023460-293 |
US $107.14 |
||
|
8
|
8
1023459-385 Weld-Lca,seal,rear,lh,c.slvrCC |
1023459-385 |
US $113.44 |
||
|
8
|
8
1023460-385 Weld-Lca,seal,rear,rh,c.slvrCC |
1023460-385 |
US $113.44 |
||
|
9
|
9
7518675 Bolt-m10x1,5x130,hx hd flg |
7518675 |
US $3.75 |
||
|
10
|
10
5137590 Shaft-pivot,104.9mm,zinc yel |
5137590 |
US $9.10 |
||
|
11
|
11
5136473 Shaft-a-arm,lca,0,75" od |
5136473 |
US $35.12 |
||
|
12
|
12
5437651 Bushing-lca,0,75" id |
5437651 |
US $6.56 |
||
|
13
|
13
5141510 Shaft-Pivot,190Mm,m10 |
5141510 |
US $22.19 |
||
|
14
|
14
1543611 ASM-PIVOT CAP,SEALED,M |
1543611 |
US $3.15 |
||
|
15
|
15
7519086 Scr-hxfl-m10x1,25x235 10,9 zod |
7519086 |
US $24.61 |
||
|
16
|
16
5439874 Bushing-standard,orv |
5439874 |
US $39.40 |
||
|
17
|
17
7547333 Nut-m10x1,25,flg,nyloc-olive d |
7547333 |
US $39.40 |
