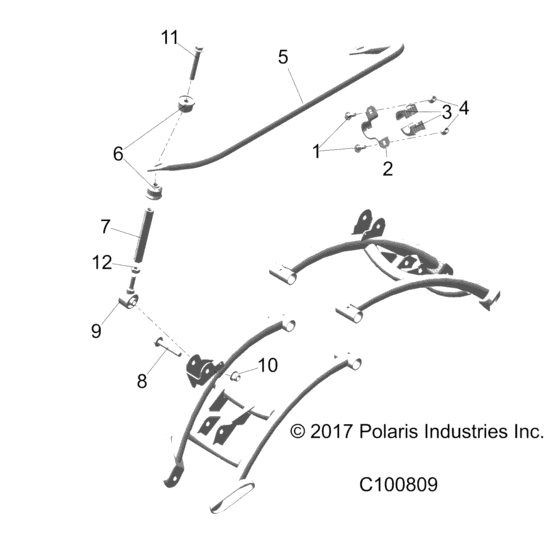

Suspension, Stabilizer Bar (A18SXS95CC/CR/ER (C100809)) Diagram Polaris SPORTSMAN XP 1000 TRACTOR
- Model code
- A18SXS95CC/CR/ER
- Year
- 2018
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7519324 Scr-rhcar-m8x1.25x25 8.8 zod |
7519324 |
US $1.77 |
||
|
2
|
2
5257028 Brkt-upper steering bushing |
5257028 |
US $22.45 |
||
|
3
|
3
5439731 Bushing-upper steering,1 in |
5439731 |
US $9.10 |
||
|
4
|
4
7547317
Nut-m8x1,25,hxflg,nylon ins
|
7547317 |
— | ||
|
5
|
5
5336853-458
TUBE-STABILIZER,FORMED,M.BLK
|
5336853-458 |
— | ||
|
6
|
6
5414877 Bushing-wshr torbar,duro80,itw |
5414877 |
US $3.94 |
||
| replacement | |||||
|
6
|
6
5415885 Bushing-Lnkg Torsionbar,duro80 |
5415885 |
US $3.94 |
||
|
7
|
7
5140845 ROD-LINKAGE,STABILIZER,METRIC |
5140845 |
US $40.58 |
||
|
8
|
8
7518826 Bolt-m10x1,5x60 hx flg hd |
7518826 |
US $2.98 |
||
|
9
|
9
7061241 ROD-END |
7061241 |
US $52.45 |
||
|
10
|
10
7547313 Nut-m10x1,5,hxflg, nylon ins |
7547313 |
US $3.94 |
||
|
11
|
11
7519896 SCR-HXFL-M10X1.5X75 8.8 ZY3 NY |
7519896 |
US $4.73 |
||
|
12
|
12
7547424 Nut-m10x1,5 8,8 hx zod |
7547424 |
US $1 |
||
