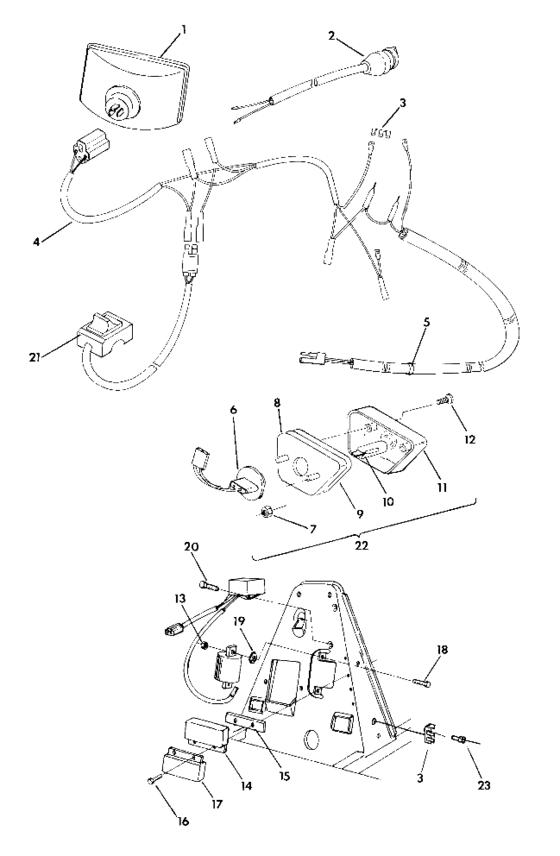

Wiring harness (Updated 5/90) Diagram Polaris TRAIL BLAZER 250
- Model code
- W907221
- Year
- 1990
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4032038
Headlight asm,
|
4032038 |
— | ||
|
2
|
2
4110102
Switch,ign.
MOD.; |
4110102 |
— | ||
| replacement | |||||
|
2
|
2
4110139
Switch,ignition,a,d,
MOD.; |
4110139 |
— | ||
|
3
|
3
4040025
Strip,terminal
|
4040025 |
— | ||
|
4
|
4
2460305
Harness, main wire
|
2460305 |
— | ||
| replacement | |||||
|
4
|
4
2460404
Harness, main wire,
|
2460404 |
— | ||
|
5
|
5
7080272 Strap, blk |
7080272 |
US $3.64 |
||
|
6
|
6
4032033
Socket,taillight asm.
|
4032033 |
— | ||
|
7
|
7
7670054
Nut, push-on (10)
10; |
7670054 |
— | ||
|
8
|
8
4032036
Backing,taillight
|
4032036 |
— | ||
|
9
|
9
4032031
Gasket,taillight
|
4032031 |
— | ||
|
10
|
10
4030040 Bulb,taillight(10)10; |
4030040 |
US $7.51 |
||
|
11
|
11
4032030
Lens, taillight
|
4032030 |
— | ||
| replacement | |||||
|
11
|
11
4032046 Lens,taillight |
4032046 |
US $18.32 |
||
|
12
|
12
4032029 Screw |
4032029 |
US $2.98 |
||
|
13
|
13
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
14
|
14
4060071
Regulator - minks
|
4060071 |
— | ||
|
15
|
15
5210650
Heat sink
|
5210650 |
— | ||
|
16
|
16
7512018 Screw(10)10; |
7512018 |
US $0.79 |
||
|
17
|
17
4060089
Limiter, etc.
|
4060089 |
— | ||
|
18
|
18
7512007 Bolt10; |
7512007 |
US $2.45 |
||
|
19
|
19
7571602 Washer10; |
7571602 |
US $2.45 |
||
|
20
|
20
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
21
|
21
4110101 Switch,aux,shut-off |
4110101 |
US $49.25 |
||
|
22
|
22
2432032
Tail light asm.
|
2432032 |
— | ||
|
23
|
23
7621222 Rivet(50)50; |
7621222 |
US $0.79 |
||
