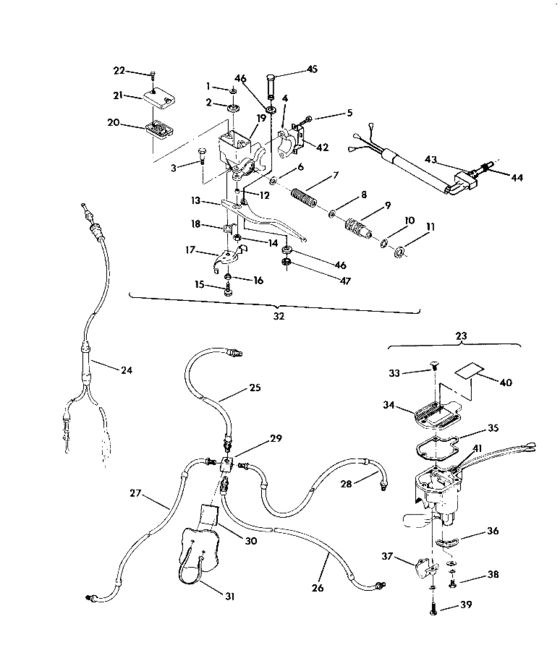

Control assembly (Trail Blazer / W927221) Diagram Polaris TRAIL BLAZER 250
- Model code
- W927221
- Year
- 1992
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1930662
Washer, baffle
10; |
1930662 |
— | ||
|
2
|
2
1930673
Baffle,master cyl,
|
1930673 |
— | ||
|
3
|
3
7512287 Bolt,brake lever10; |
7512287 |
US $3.75 |
||
|
4
|
4
5630342
Clamp, master cyl,
|
5630342 |
— | ||
|
5
|
5
7512290 Bolt,socket head10; |
7512290 |
US $3.26 |
||
|
6
|
6
7555708 Washer10; |
7555708 |
US $2.45 |
||
|
7
|
7
7041203 Spring,compression,(10)10; |
7041203 |
US $18.66 |
||
|
8
|
8
5410164 U packing seal |
5410164 |
US $4.73 |
||
|
9
|
9
5020599
Piston, master cyl.
|
5020599 |
— | ||
|
10
|
10
5410163 O ring (10) |
5410163 |
US $2.28 |
||
|
11
|
11
3610022 Seal, oil |
3610022 |
US $15.75 |
||
|
12
|
12
5332931
Bushing,brake lever
|
5332931 |
— | ||
|
13
|
13
5630387
Lever, brake
|
5630387 |
— | ||
|
14
|
14
7542124 Nut10; |
7542124 |
US $1.89 |
||
|
15
|
15
7511866 Screw10; |
7511866 |
US $2.45 |
||
|
16
|
16
5020545 Bushing,pk,brake lever |
5020545 |
US $4.43 |
||
|
17
|
17
2050060 Lever,park,brake |
2050060 |
US $7.09 |
||
|
18
|
18
7041229 Spring,pk,brake |
7041229 |
US $20.69 |
||
|
19
|
19
5130772
Hsg.,master cyl.
|
5130772 |
— | ||
|
20
|
20
5410527 Gasket,master cyl, |
5410527 |
US $6.65 |
||
|
21
|
21
5630338
Cover,master cyl,
|
5630338 |
— | ||
|
22
|
22
7512050 Screw,w/washer10; |
7512050 |
US $2.45 |
||
|
23
|
23
2010091
Throttle control asm.
|
2010091 |
— | ||
|
24
|
24
7080375
Cable,throttle control
|
7080375 |
— | ||
| replacement | |||||
|
24
|
24
7080531 Cable,throttle |
7080531 |
US $206.10 |
||
|
25
|
25
1930633
Line,brake,up.,w/ftgs.
M/C; |
1930633 |
— | ||
| replacement | |||||
|
25
|
25
1930748 Line,brake,up,/ftgs,M/C; |
1930748 |
US $88.64 |
||
|
26
|
26
1930631
Line,brake,lh.frt,w/ftgs.
|
1930631 |
— | ||
| replacement | |||||
|
26
|
26
1930752 Line,brake,lh,fr,w/fittings |
1930752 |
US $88.64 |
||
|
27
|
27
1930634
Line,brake,rh frt.
|
1930634 |
— | ||
| replacement | |||||
|
27
|
27
1930753 Line,brake,rh,fr,w/fittings |
1930753 |
US $88.64 |
||
|
28
|
28
1930632
Line,brake,r.,w/ftgs.
|
1930632 |
— | ||
|
29
|
29
7052044
Fitting, tee
|
7052044 |
— | ||
|
30
|
30
5850040
Pad,gas tank
No Longer Available; |
5850040 |
— | ||
|
31
|
31
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
32
|
32
2050055
Master cyl.asm.
ATV;Incl. 1-5,10-19; |
2050055 |
— | ||
| replacement | |||||
|
32
|
32
2050073 Master cylinderATV;Incl. 1-5,10-19; |
2050073 |
US $306.22 |
||
|
33
|
33
2010079
Screw,button head
|
2010079 |
— | ||
|
34
|
34
2010080
Cap
|
2010080 |
— | ||
|
35
|
35
2010081
Packing,throttle
|
2010081 |
— | ||
|
36
|
36
2010075
Plate
|
2010075 |
— | ||
|
37
|
37
2010078 Holder |
2010078 |
US $16.24 |
||
|
38
|
38
2010076 Bolt, hex |
2010076 |
US $5.22 |
||
|
39
|
39
2010077 Screw, sems10; |
2010077 |
US $3.75 |
||
|
40
|
40
7072724
Decal,throttle(eng,)
No Longer Available; ENG.; |
7072724 |
— | ||
|
41
|
41
4110131
Switch,etc,repl.
2WD-4X6; |
4110131 |
— | ||
|
42
|
42
5222318
Brkt,o`ride sw.
|
5222318 |
— | ||
| replacement | |||||
|
42
|
42
5222475
Brkt,o`ride sw.
|
5222475 |
— | ||
|
43
|
43
4110119 Switch, o'ride |
4110119 |
US $15.75 |
||
|
44
|
44
7080379
Boot, o`ride sw.
|
7080379 |
— | ||
|
45
|
45
7661627
Pin,brakelever roller
|
7661627 |
— | ||
|
46
|
46
5020598
Roller, brake lever
|
5020598 |
— | ||
|
47
|
47
7710425
Ring, retaining
10; |
7710425 |
— | ||
