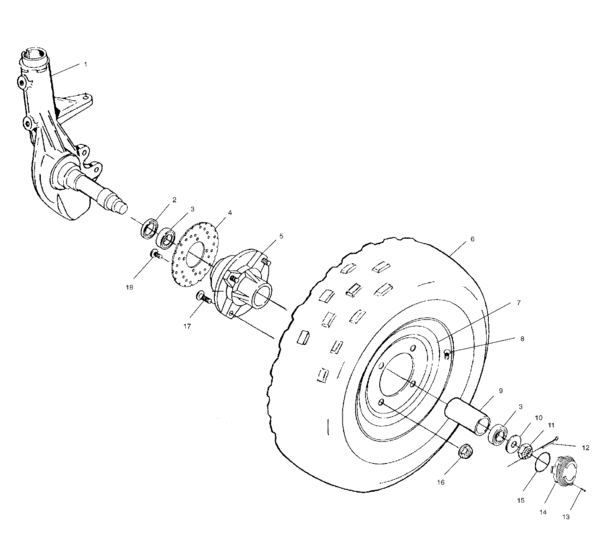

Front wheel (A02CA32AA/AB) Diagram Polaris TRAIL BOSS
- Model code
- A02CA32AA/AB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
3610020 Seal,front hub |
3610020 |
US $19.69 |
||
|
3
|
3
3513519
Bearing, ball
|
3513519 |
— | ||
|
4
|
4
5243675
Disc, brake
|
5243675 |
— | ||
|
5
|
5
5132627 Hub-wheel 2wd,machined |
5132627 |
US $93.14 |
||
|
6
|
6
5411264
Tire, titan
23x7-10; |
5411264 |
— | ||
|
7
|
7
1520175-133
Rim,frt,white
|
1520175-133 |
— | ||
|
8
|
8
1525017 Valve, rim |
1525017 |
US $6.56 |
||
|
9
|
9
5010256 Spacer, hub,front |
5010256 |
US $11.11 |
||
|
10
|
10
7555721 Washer(10) |
7555721 |
US $5.25 |
||
|
11
|
11
7542712 Nut |
7542712 |
US $11.36 |
||
|
12
|
12
7661407 Cotter pin |
7661407 |
US $3.64 |
||
|
13
|
13
7511866 ScrewIf built after 9/18/00; |
7511866 |
US $2.45 |
||
|
14
|
14
5433868 Cap,hub |
5433868 |
US $9.15 |
||
|
15
|
15
5410470 O ring (10) |
5410470 |
US $52.50 |
||
|
16
|
16
7542459 Nut, flanged(10) |
7542459 |
US $65.60 |
||
|
17
|
17
7515523 Stud |
7515523 |
US $4.73 |
||
|
18
|
18
7512325 Bolt |
7512325 |
US $5.25 |
