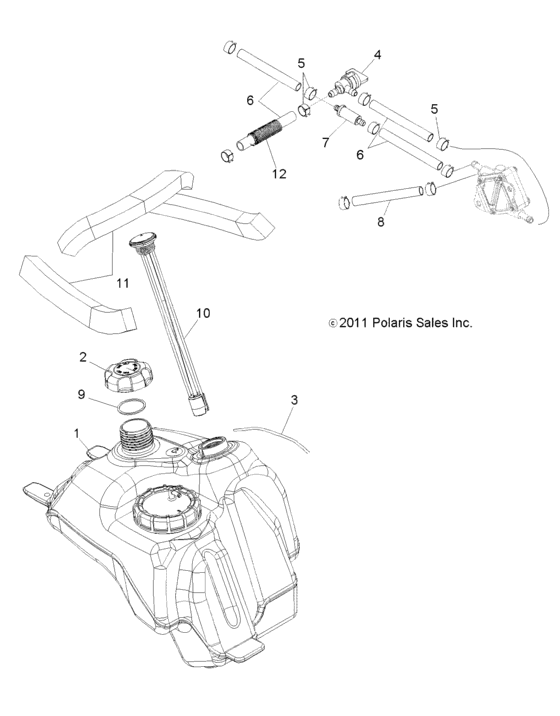

Body, Fuel System (A12EA32AA (49ATVFUEL12TBLZR)) Diagram Polaris TRAIL BOSS 330
- Model code
- A12EA32AA
- Year
- 2012
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2520993 Asm-fuel tankIncl. 10 |
2520993 |
US $378.14 |
||
|
2
|
2
5433687 Cap,gas tankIncl. 9 |
5433687 |
US $24.08 |
||
|
3
|
3
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
4
|
4
7052249 Valve-fuel,plastic 90?,1/4hose |
7052249 |
US $22.45 |
||
|
5
|
5
7080003 Clamp,hose(10) |
7080003 |
US $0.79 |
||
|
6
|
6
8450117-250 Fuel hose-250 cm |
8450117-250 |
US $43.72 |
||
|
7
|
7
2530009 Filter,small,in-line,(10) |
2530009 |
US $6.56 |
||
|
8
|
8
8450040-600 Line fuel,1/4 id(600 cm,) |
8450040-600 |
US $65.99 |
||
|
9
|
9
5812123 Gasket |
5812123 |
US $10.03 |
||
|
10
|
10
3280524 Asm-fuel gauge,threaded |
3280524 |
US $35.67 |
||
|
11
|
11
5813255 Foam-seal,1,5 x 12 |
5813255 |
US $10.69 |
||
|
12
|
12
8360052-305 Tubing,convoluted |
8360052-305 |
US $18.32 |
