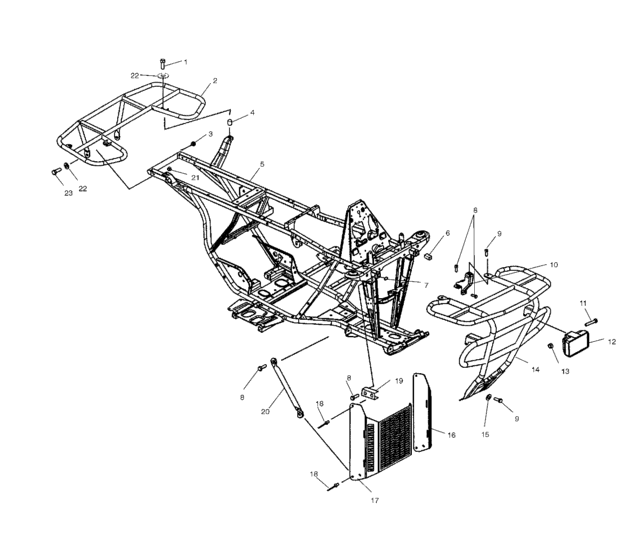

Bumper and rack mounting (A03CA32AA) Diagram Polaris TRAIL BOSS 330
- Model code
- A03CA32AA
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517977
Bolt-5/16-18x2,25 flg tap/r-y
|
7517977 |
— | ||
|
2
|
2
1014039-067 Rear rack,blk **AA; |
1014039-067 |
US $254.08 |
||
|
2
|
2
1014039-385
Weld-rear rack,slv
AB; |
1014039-385 |
— | ||
|
3
|
3
5432831 Plug,endcap,ribbed |
5432831 |
US $3.75 |
||
|
4
|
4
5334092 Spacer-,375x,75x1,56,b |
5334092 |
US $7.18 |
||
|
5
|
5
1014105-067
Frame, main
If built before 12/01/02; |
1014105-067 |
— | ||
|
5
|
5
1014347-067
Main frame,trail boss **
If built after 12/01/02; |
1014347-067 |
— | ||
|
6
|
6
5810467 Plug, frame |
5810467 |
US $6.60 |
||
|
7
|
7
7547069 Nutsert,hex |
7547069 |
US $3.26 |
||
|
8
|
8
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
9
|
9
7515399 Screw(10) * |
7515399 |
US $6.13 |
||
|
10
|
10
1013744-067 Weld-support rack,front,lh,blk |
1013744-067 |
US $138.64 |
||
|
10
|
10
1013746-067 Weld-support,rack,front,rh,blk |
1013746-067 |
US $114.99 |
||
|
11
|
11
7515189 Screw(10) * |
7515189 |
US $1.89 |
||
|
12
|
12
2410285
Asm-headlight,30/30w,top mnt
|
2410285 |
— | ||
|
12
|
12
4030061 Bulb,h/l,30/30 w, |
4030061 |
US $38.38 |
||
|
13
|
13
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
14
|
14
1014040-067
Bumper, front
AA; |
1014040-067 |
— | ||
|
14
|
14
1014040-385
Bumper, front
AB; |
1014040-385 |
— | ||
|
15
|
15
7555827 Washer |
7555827 |
US $3.26 |
||
|
16
|
16
5245342-067 Shield-radiator side,lh,st,blk |
5245342-067 |
US $46.87 |
||
|
17
|
17
5245343-067
Shield, radiator, side, rh
|
5245343-067 |
— | ||
|
18
|
18
7661121 Rivet-1/4"multigrip,,08-,35,b ( |
7661121 |
US $1.89 |
||
|
19
|
19
5245357-067 Brkt-mtg shield,blk |
5245357-067 |
US $13.20 |
||
|
20
|
20
5334231-067 Tube-support,grill,blk |
5334231-067 |
US $15.70 |
||
|
21
|
21
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
22
|
22
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
23
|
23
7512329 Bolt |
7512329 |
US $4.59 |
