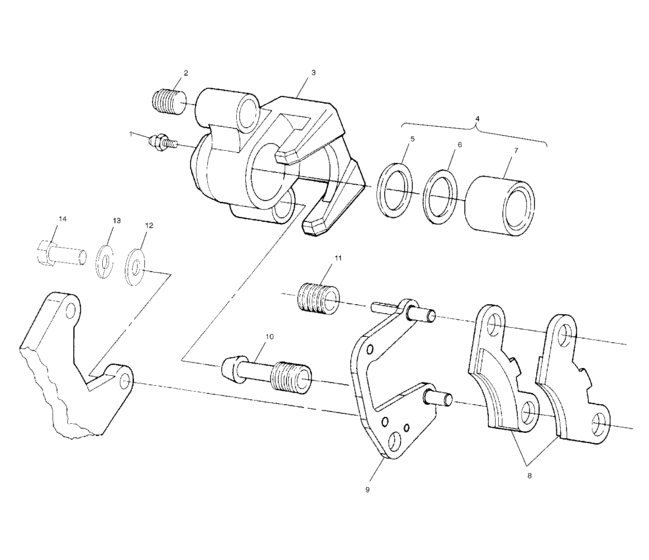

Front brake (A03CA32AA) Diagram Polaris TRAIL BOSS 330
- Model code
- A03CA32AA
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7080352 Screw,bleeder (10) |
7080352 |
US $65.60 |
||
|
2
|
2
7515489 Scr-3/8-24x5/16 soc set-y |
7515489 |
US $3.75 |
||
|
3
|
3
1910695
Asm-caliper,brake,lh,1-3/16,7"
Incl. 1-7,9,10; |
1910695 |
— | ||
|
3
|
3
1910696
Asm-caliper,brake,rh,1-3/16,7"
Incl. 1-7,9,10; |
1910696 |
— | ||
|
4
|
4
1930665 Piston & seal,kitIncl. 5-7; |
1930665 |
US $54.15 |
||
|
5
|
5
5410779 Ring,square,molded,,094.094; |
5410779 |
US $13.04 |
||
|
6
|
6
5410780 Ring,square,molded,,103x,134.103 x .134; |
5410780 |
US $13.04 |
||
|
7
|
7
5132294
Piston, brake, long
|
5132294 |
— | ||
| replacement | |||||
|
7
|
7
1930665 Piston & seal,kit |
1930665 |
US $54.15 |
||
|
8
|
8
2202412 KIT BRAKE PAD ASM (4)Complete Set of 2 Pads; |
2202412 |
US $68.92 |
||
|
9
|
9
1910412
Mount,asm,caliper
|
1910412 |
— | ||
|
10
|
10
5410495
Boot, bushing
|
5410495 |
— | ||
|
11
|
11
5410494
Boot, pin seal
|
5410494 |
— | ||
|
12
|
12
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
13
|
13
7552901 Washer,spring lock(10) |
7552901 |
US $39.40 |
||
|
14
|
14
7512365 Screw, cap(10) |
7512365 |
US $1.49 |
||
