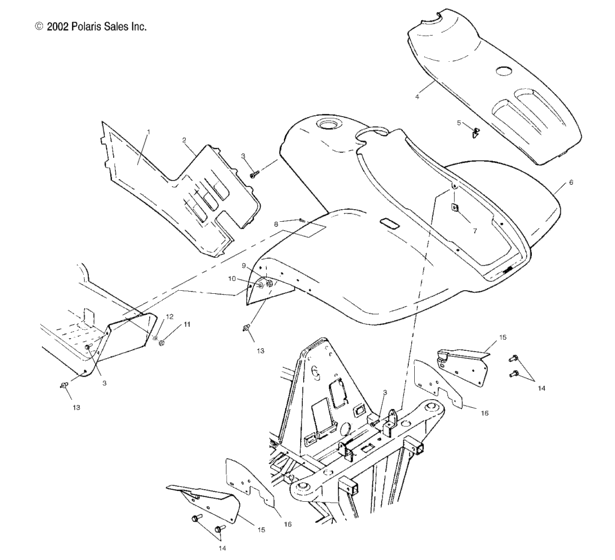

Front cab (A03CA32AA) Diagram Polaris TRAIL BOSS 330
- Model code
- A03CA32AA
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5812138 Foam-lh |
5812138 |
US $4.94 |
||
|
1
|
1
5811797 Foam-lh |
5811797 |
US $9.15 |
||
|
1
|
1
2632284-341 Panel/foam asm,lh,sonic blue **AA; |
2632284-341 |
US $142.80 |
||
|
1
|
1
2632284-424 Asm-panel/foam,lh,wineinvasionAB; |
2632284-424 |
US $112.28 |
||
|
2
|
2
2632482-341
Asm., panel/foil, rh
AA; |
2632482-341 |
— | ||
|
2
|
2
2632482-424
Asm., panel/foil, rh
AB; |
2632482-424 |
— | ||
|
2
|
2
5812385
Foil-side panel,rh
|
5812385 |
— | ||
|
3
|
3
7517916 Scr-1/4-20x3/4-tr/tx/tap-m |
7517916 |
US $5.22 |
||
|
4
|
4
5432088-341
Cover-front,sonic blue met **
AA; |
5432088-341 |
— | ||
|
4
|
4
5432088-424
Cover, front
AB; |
5432088-424 |
— | ||
|
5
|
5
7670085 Clip,spring(10) |
7670085 |
US $1.77 |
||
|
6
|
6
2632303-341
Asm-cab,front,svc,sonic blue
Incl. Warning Decals; AA; |
2632303-341 |
— | ||
|
6
|
6
2632303-424
Asm-cab,front,svc,wineinvasion
Incl. Warning Decals; AB; |
2632303-424 |
— | ||
|
7
|
7
7670057 Nut, speed(10) * |
7670057 |
US $2.63 |
||
|
8
|
8
7512085
Screw
|
7512085 |
— | ||
| replacement | |||||
|
8
|
8
7511989
Screw
|
7511989 |
— | ||
|
9
|
9
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
10
|
10
7555859 Washer, flat(10) |
7555859 |
US $39.40 |
||
|
11
|
11
7541925
Nut, nylok 10-24 y
|
7541925 |
— | ||
|
12
|
12
7555792 Washer |
7555792 |
US $2.45 |
||
|
13
|
13
7081040 Rivet-plastic,r-lock,,197 dia ( |
7081040 |
US $5.69 |
||
|
14
|
14
7670088 Clip,plastic dart,nylon |
7670088 |
US $2.45 |
||
|
15
|
15
5245394-067 Shield-splash,lh,blk |
5245394-067 |
US $19.30 |
||
|
15
|
15
5245533-067 Shield-splash,rh,blk |
5245533-067 |
US $19.30 |
||
|
16
|
16
5811917 Shield-deflector |
5811917 |
US $9.15 |
||
