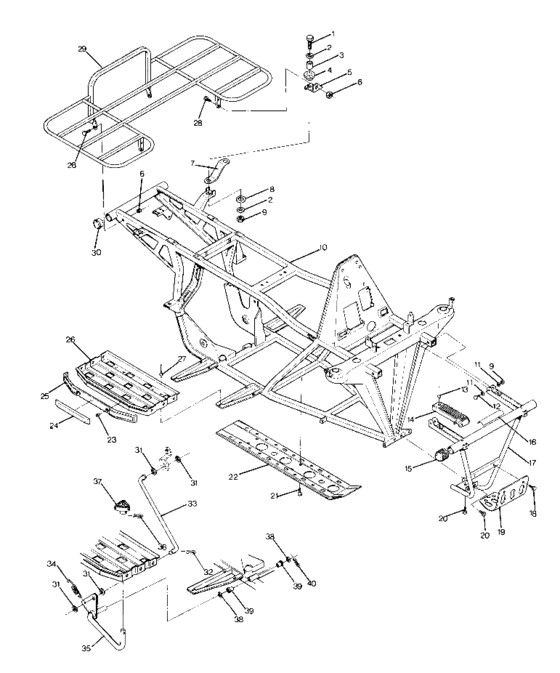

Frame assembly with racks Diagram Polaris TRAIL BOSS
- Model code
- W898527
- Year
- 1989
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7515304 Screw-flanged10; |
7515304 |
US $3.75 |
||
|
2
|
2
7555716 Washer10; |
7555716 |
US $2.45 |
||
|
3
|
3
5010192 Bushing |
5010192 |
US $4.94 |
||
|
4
|
4
5410241
Dampener, vibration
|
5410241 |
— | ||
|
5
|
5
5220899
Brkt,lh support rack
|
5220899 |
— | ||
| replacement | |||||
|
5
|
5
5243468-067
Brkt,support rack,lh,blk
|
5243468-067 |
— | ||
|
5
|
5
5220901
Brkt,rh support rack
|
5220901 |
— | ||
| replacement | |||||
|
5
|
5
5243469-067
Brkt,support rack,rh,blk
|
5243469-067 |
— | ||
|
6
|
6
7542327 Nut, nylok10;Nylok; |
7542327 |
US $2.45 |
||
|
7
|
7
5220902
Support,r.fender
|
5220902 |
— | ||
| replacement | |||||
|
7
|
7
5220902-067 Support,r,fender |
5220902-067 |
US $36.61 |
||
|
8
|
8
5410436 Washer,rubber (10) |
5410436 |
US $1.89 |
||
|
9
|
9
7542324 Nut,nylok(10)10;Nylok; |
7542324 |
US $26.30 |
||
|
10
|
10
1040202
Frame,square
No Longer Available; BLUE; |
1040202 |
— | ||
|
11
|
11
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
12
|
12
7512329 Bolt10; |
7512329 |
US $4.59 |
||
|
13
|
13
7621229 Rivet(50)50; |
7621229 |
US $0.79 |
||
|
14
|
14
5431023 Cover,brkt,bumper mt, |
5431023 |
US $13.20 |
||
|
15
|
15
5431013
Cap,bumper,fr.
|
5431013 |
— | ||
| replacement | |||||
|
15
|
15
5431013-093
Cap,bumper,fr,fire red
|
5431013-093 |
— | ||
|
16
|
16
7072699
Decal,fr.suspension
No Longer Available; |
7072699 |
— | ||
|
17
|
17
2670106
Bumper, front
|
2670106 |
— | ||
| replacement | |||||
|
17
|
17
2670106-067
Bumper,frt,
|
2670106-067 |
— | ||
|
18
|
18
7512208 Screw10; |
7512208 |
US $3.26 |
||
|
19
|
19
5220981
Skid-plate,fr,bumper
|
5220981 |
— | ||
|
20
|
20
7512399 Screw10; |
7512399 |
US $3.94 |
||
|
21
|
21
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
22
|
22
5220922
Guard, rock
|
5220922 |
— | ||
| replacement | |||||
|
22
|
22
5220922-067
Guard, rock, blk,
|
5220922-067 |
— | ||
|
23
|
23
7661812
Rivet,semi-tube,(50) *
50; |
7661812 |
— | ||
|
24
|
24
2670071
Reflector amber
|
2670071 |
— | ||
|
25
|
25
5431019
Rubrail,
FOOTREST; |
5431019 |
— | ||
| replacement | |||||
|
25
|
25
5431484
Trim, footrest
FOOTREST; |
5431484 |
— | ||
|
26
|
26
1040189
Pad, foot, lh.
|
1040189 |
— | ||
| replacement | |||||
|
26
|
26
1040274-117 Footpad,lh,silver |
1040274-117 |
US $101.45 |
||
|
27
|
27
7661620
Rivet
MONOBOLT; |
7661620 |
— | ||
| replacement | |||||
|
27
|
27
7661637 Rivet,interlock,z(50) *MONOBOLT; |
7661637 |
US $0.79 |
||
|
28
|
28
7515341
Screw,pan hd,phillips
10; |
7515341 |
— | ||
| replacement | |||||
|
28
|
28
7515355
Screw
10; |
7515355 |
— | ||
|
29
|
29
2670110
Rack, rear
|
2670110 |
— | ||
| replacement | |||||
|
29
|
29
2670136-067
Rack,rear,blk,
|
2670136-067 |
— | ||
|
30
|
30
5430823
Cap, bumper, 4 whl.
10; |
5430823 |
— | ||
| replacement | |||||
|
30
|
30
5432047 Plug,endcap10; |
5432047 |
US $6.11 |
||
|
31
|
31
7555827 Washer10; |
7555827 |
US $3.26 |
||
|
32
|
32
7661103 Pin, cotter10; |
7661103 |
US $3.26 |
||
|
33
|
33
5224386
Rod,brake linkage
|
5224386 |
— | ||
|
34
|
34
7041223
Spring, brake
|
7041223 |
— | ||
|
35
|
35
1910044
Pedal, brake
|
1910044 |
— | ||
|
36
|
36
7661415
Pin, spiral
No Longer Available; |
7661415 |
— | ||
|
37
|
37
5130715
Pedal, foot
|
5130715 |
— | ||
| replacement | |||||
|
37
|
37
5130715-067
Pedal,foot
|
5130715-067 |
— | ||
|
38
|
38
7558702 Washer thrust10; |
7558702 |
US $2.45 |
||
|
39
|
39
5431107
Bushing, pedal pivot
|
5431107 |
— | ||
|
40
|
40
7661401 Pin,cotter(10)10; |
7661401 |
US $3.94 |
||
