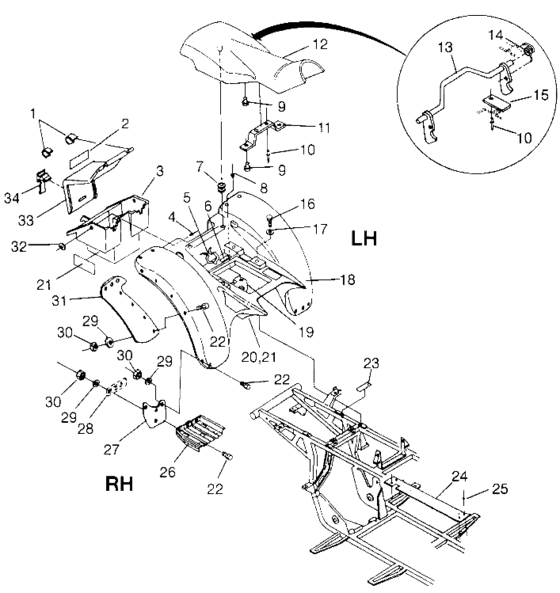

Rear cab (Trail Boss W968527) Diagram Polaris TRAIL BOSS
- Model code
- W968527
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7670050 Clip, lid hinge10; |
7670050 |
US $1.89 |
||
|
2
|
2
7072805
Decal,pass.wrn.
No Longer Available; CPSC; |
7072805 |
— | ||
|
3
|
3
5430882
Box,tool comp,
|
5430882 |
— | ||
|
4
|
4
7621462 Rivet(50)50; |
7621462 |
US $1.89 |
||
|
5
|
5
7080385
Retainer,tool pouch
|
7080385 |
— | ||
|
6
|
6
7073761 Decal,carb,info, |
7073761 |
US $1.89 |
||
|
7
|
7
5411042
Grommet
|
5411042 |
— | ||
|
8
|
8
7621432 Rivet,3/16x,402(50)50; |
7621432 |
US $0.79 |
||
|
9
|
9
5410414 Bumper, rubber (10) |
5410414 |
US $1.89 |
||
|
10
|
10
7621403 Blind rivet(50)50; |
7621403 |
US $0.79 |
||
|
11
|
11
5222837-067
Brkt,support seat base
|
5222837-067 |
— | ||
|
12
|
12
2681724-179
Seat asm,,aqua marine
ATV;Incl. 9-15; |
2681724-179 |
— | ||
| replacement | |||||
|
12
|
12
2682357-179
New Genuine Part
ATV;Incl. 9-15; |
2682357-179 |
— | ||
|
12
|
12
2681723-179
Cover,seat,aqua marine
|
2681723-179 |
— | ||
| replacement | |||||
|
12
|
12
2681653
New Genuine Part
|
2681653 |
— | ||
|
13
|
13
1011558
Latch,seat
|
1011558 |
— | ||
|
14
|
14
7041158 Spring, latch |
7041158 |
US $18.45 |
||
|
15
|
15
5211033 Bracket,lever retainer |
5211033 |
US $23.61 |
||
|
16
|
16
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
17
|
17
7558302 Washer,wrought10; |
7558302 |
US $2.45 |
||
|
18
|
18
5430991-133
Cab,rear,white
|
5430991-133 |
— | ||
|
19
|
19
5220880 Brkt,rear holddown |
5220880 |
US $7.09 |
||
|
20
|
20
5810416
Tape,foil,r,cab
Inside; |
5810416 |
— | ||
|
20
|
20
5810424
Tape, foil
|
5810424 |
— | ||
|
21
|
21
5810310
Tape, foil
|
5810310 |
— | ||
|
22
|
22
7512282 Bolt, black(10)10; |
7512282 |
US $1.89 |
||
|
23
|
23
7072791
Decal,filter element
No Longer Available; |
7072791 |
— | ||
|
24
|
24
5222860-067
Guard,clutch,outer
|
5222860-067 |
— | ||
|
25
|
25
7661638 Rivet,interlock,b(50)50; |
7661638 |
US $0.79 |
||
|
27
|
27
5850076
Mudflap,lh,low,rear
|
5850076 |
— | ||
|
27
|
27
5850111
Mudflap,rh,low,rear
|
5850111 |
— | ||
|
28
|
28
5211131-067 Brkt, lh mud flap |
5211131-067 |
US $30.42 |
||
|
29
|
29
7555859 Washer, flat(10)10; |
7555859 |
US $39.40 |
||
|
30
|
30
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
31
|
31
5850060
Flap,mud,lh rear
|
5850060 |
— | ||
|
31
|
31
5850061
Flap,mud,rh rear
|
5850061 |
— | ||
|
32
|
32
7558212 Washer,13/64x1/2x18ga,fl-y (10) |
7558212 |
US $0.79 |
||
|
33
|
33
5430769-133 Lid,toolbox,(white)WHITE; |
5430769-133 |
US $112.28 |
||
|
34
|
34
5410425 Strap,tool compartment |
5410425 |
US $9.15 |
||
