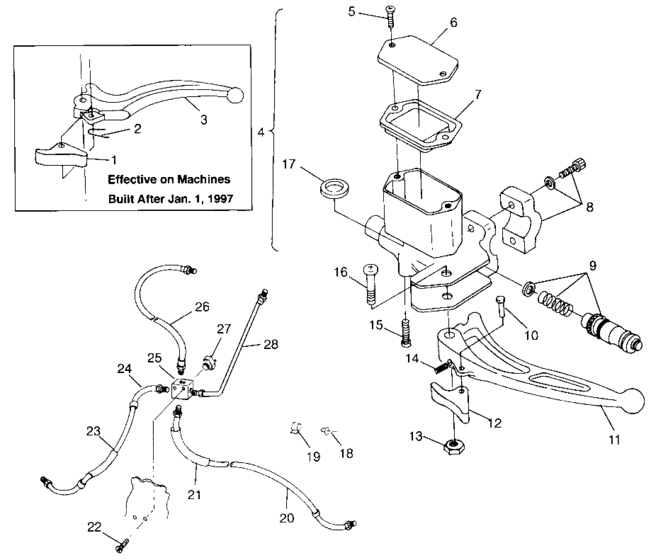

Controls (MASTER CYLINDER/BRAKE LINE Trail Boss W97AA25C) Diagram Polaris TRAIL BOSS
- Model code
- W97AA25C
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2201090 Kit,lever,parkbrakeIncl. 2, 10; |
2201090 |
US $35.67 |
||
|
3
|
3
2201034 Kit,leverIncl. 1, 2, 3, 10; |
2201034 |
US $61.06 |
||
|
4
|
4
2050073 Master cylinderIncl. 5-17; |
2050073 |
US $306.22 |
||
|
4
|
4
2200809 Kit,master cyl reservoirIncl. 5-6, 17; |
2200809 |
US $64.02 |
||
|
5
|
5
1930797 Bolt(2),res.cap,mcyl2; |
1930797 |
US $9.85 |
||
|
6
|
6
1930796 Cap,reservoir |
1930796 |
US $24.43 |
||
|
7
|
7
1930795 Diaphragm,res. |
1930795 |
US $39.38 |
||
|
8
|
8
2200808 Kit,m.cyl.clamp |
2200808 |
US $39.39 |
||
|
9
|
9
2200810
Kit,m.cyl.rebuild
|
2200810 |
— | ||
| replacement | |||||
|
9
|
9
1930799 Piston,mcyl,3/4" |
1930799 |
US $93.52 |
||
|
10
|
10
1930804
Rivet
|
1930804 |
— | ||
|
11
|
11
2200811
Kit,m.cyl lever
Incl. 6, 12, 14; |
2200811 |
— | ||
| replacement | |||||
|
11
|
11
2201034 Kit,leverIncl. 6, 12, 14; |
2201034 |
US $61.06 |
||
|
12
|
12
1930802
Lever,parkbrake
|
1930802 |
— | ||
| replacement | |||||
|
12
|
12
2201034 Kit,lever |
2201034 |
US $61.06 |
||
|
13
|
13
1930806
Nut,handle pivot
|
1930806 |
— | ||
|
14
|
14
1930803
Spring,parking brake
|
1930803 |
— | ||
| replacement | |||||
|
14
|
14
2201034 Kit,lever |
2201034 |
US $61.06 |
||
|
15
|
15
1930792 Bolt,reservoir (2) |
1930792 |
US $14.09 |
||
|
16
|
16
1930805
Bolt
|
1930805 |
— | ||
|
18
|
18
7621462 Rivet(50)50; |
7621462 |
US $1.89 |
||
|
19
|
19
7080539 Clamp,nylon,cable10; |
7080539 |
US $2.45 |
||
|
20
|
20
1930752 Line,brake,lh,fr,w/fittings |
1930752 |
US $88.64 |
||
|
21
|
21
8360031-30
Conduit
|
8360031-30 |
— | ||
| replacement | |||||
|
21
|
21
8360011-34 Convolute tubing-3/4"id,34cm (1 |
8360011-34 |
US $5.64 |
||
|
22
|
22
7512024 Screw10; |
7512024 |
US $2.45 |
||
|
23
|
23
8360031-38 Conduit, 38 cm, |
8360031-38 |
US $3.26 |
||
|
24
|
24
1930753 Line,brake,rh,fr,w/fittings |
1930753 |
US $88.64 |
||
|
25
|
25
7052103
Fitting,cross invert,flare
|
7052103 |
— | ||
|
26
|
26
1930748 Line,brake,up,/ftgs, |
1930748 |
US $88.64 |
||
|
27
|
27
4110164 Switch,stoplight |
4110164 |
US $34.49 |
||
|
28
|
28
1930751
Line,brake,rear
|
1930751 |
— | ||
