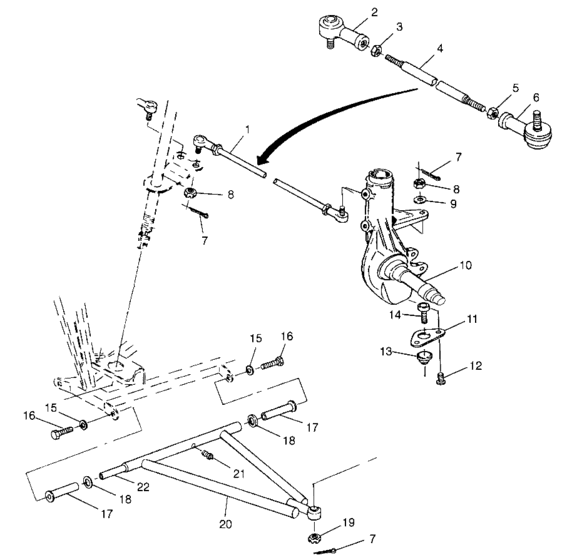

Steering/a-arm (Trail Boss W97AA25C) Diagram Polaris TRAIL BOSS
- Model code
- W97AA25C
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1822307
Tierod asm,relube
Incl. 2-6; |
1822307 |
— | ||
|
2
|
2
7060172 Rod,end,rh,10 mm, |
7060172 |
US $51.21 |
||
|
3
|
3
7546901 Nut, rh, 10 mm,10; |
7546901 |
US $2.98 |
||
|
4
|
4
5020478 Tie rod |
5020478 |
US $43.72 |
||
|
5
|
5
7546902 Nut, lh, 10 mm,10; |
7546902 |
US $3.26 |
||
|
6
|
6
7060171 Rod end,lh,w/ftg,10 mm, |
7060171 |
US $51.21 |
||
|
7
|
7
7661203 Pin,cotter(10)10; |
7661203 |
US $26.30 |
||
|
8
|
8
7546904 Nut, castle(10)10; |
7546904 |
US $3.26 |
||
|
9
|
9
7555806 Washer,flat(10)10; |
7555806 |
US $13.10 |
||
|
11
|
11
5211121 Brkt, ball joint |
5211121 |
US $34.46 |
||
|
12
|
12
7512284 Bolt, socket(10)10; |
7512284 |
US $1.96 |
||
|
13
|
13
5410548
Boot, rubber
|
5410548 |
— | ||
| replacement | |||||
|
13
|
13
5412658 Boot-balljoint,greaseless,strt |
5412658 |
US $6.56 |
||
|
14
|
14
7080673
Joint, ball
|
7080673 |
— | ||
| replacement | |||||
|
14
|
14
7080927
Joint, ball
|
7080927 |
— | ||
|
15
|
15
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
16
|
16
7515458
Bolt
10; |
7515458 |
— | ||
| replacements | |||||
|
16
|
16
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
16
|
16
7512492-SWED
New Genuine Part
10; |
7512492-SWED |
— | ||
|
17
|
17
5431596
Bushing,a-arm,long.
|
5431596 |
— | ||
| replacement | |||||
|
17
|
17
5433066
Bushing, a-arm, long
|
5433066 |
— | ||
|
18
|
18
5020677 Bushing,a-arm spacer(10)10; |
5020677 |
US $118.10 |
||
|
19
|
19
7542438 Nut, castle(10)10; |
7542438 |
US $2.63 |
||
|
20
|
20
2200477
Kit,a-frame,lh
Incl. 7, 20, 21, 18-15; |
2200477 |
— | ||
|
20
|
20
2200478
Kit,a-frame,rh
Incl. 7, 20, 21, 18-15; |
2200478 |
— | ||
|
21
|
21
7080433 Fitting,lubrication,threaded(1010; |
7080433 |
US $5.25 |
||
|
22
|
22
5020680
Shaft, a-arm,(2x4)
2X4; |
5020680 |
— | ||
