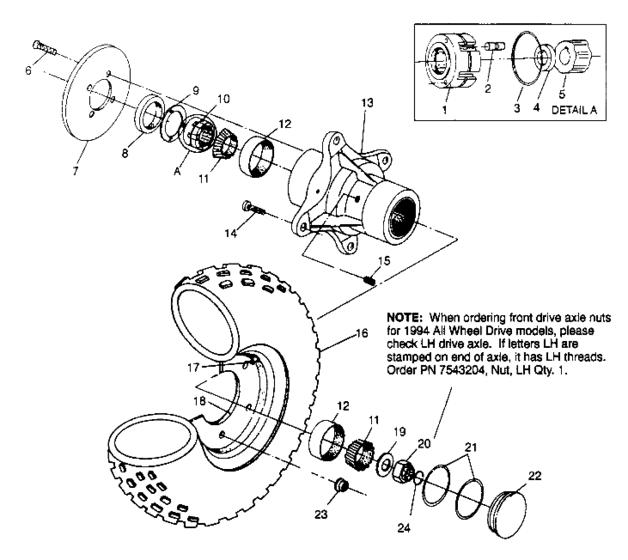

Front wheel assembly (4x4 300 W958130) Diagram Polaris TRAIL BOSS 4X4 300
- Model code
- W958130
- Year
- 1995
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3250028 Cage, roll |
3250028 |
US $212.73 |
||
|
2
|
2
3250010 Roll |
3250010 |
US $29.07 |
||
|
3
|
3
3250032 Spring,garter |
3250032 |
US $20.28 |
||
|
4
|
4
3250026
Spacer
|
3250026 |
— | ||
|
5
|
5
3250027
Cam
|
3250027 |
— | ||
|
6
|
6
7515321 Bolt10; |
7515321 |
US $1.89 |
||
|
7
|
7
5211325 Disc, brake |
5211325 |
US $73.87 |
||
|
8
|
8
3610019 Seal, fr, hub |
3610019 |
US $35.12 |
||
|
9
|
9
5211148 Plate, armature |
5211148 |
US $14.28 |
||
|
10
|
10
1520214
Clutch asm,fr.hub,e/m,hvy.
|
1520214 |
— | ||
| replacement | |||||
|
10
|
10
1520281 Clutch,fr hub e/m |
1520281 |
US $412.20 |
||
|
11
|
11
3554506 Brg,taper,roll,cone |
3554506 |
US $33.50 |
||
|
12
|
12
3554507 Brg,taper,roll cup |
3554507 |
US $33.50 |
||
|
13
|
13
1520182
Hub asm,w/brg.race
Incl. 8, 12, 14; |
1520182 |
— | ||
|
14
|
14
7515523 Stud10; |
7515523 |
US $4.73 |
||
|
15
|
15
7052045 Plug,magnetic drain |
7052045 |
US $7.89 |
||
|
16
|
16
5410480
Wrangler sport 22-800-10nhs
22X8-10;22x8x10; |
5410480 |
— | ||
|
17
|
17
1525017 Valve, rim |
1525017 |
US $6.56 |
||
|
18
|
18
1520175-117
Rim,frt,(silver)
SILVER; |
1520175-117 |
— | ||
|
19
|
19
7555903 Washer10; |
7555903 |
US $2.45 |
||
|
20
|
20
7543201
Nut,rh thread
See Footnote; |
7543201 |
— | ||
|
20
|
20
7543204 Nut,lh threadSee Footnote; |
7543204 |
US $21.67 |
||
|
21
|
21
5410470 O ring (10) |
5410470 |
US $52.50 |
||
|
22
|
22
5431368 Cap, hub* |
5431368 |
US $19.30 |
||
|
23
|
23
7542459 Nut, flanged(10)10; |
7542459 |
US $65.60 |
||
|
24
|
24
7710436 Ring,retaining10; |
7710436 |
US $5.25 |
||
