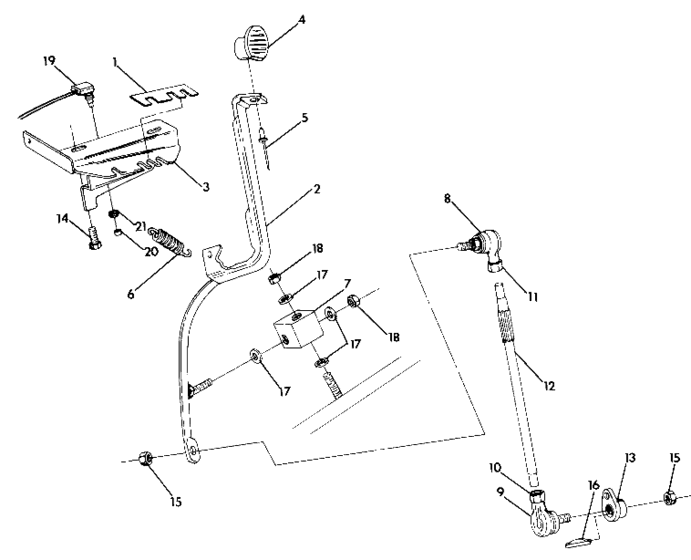

Shift linkage assembly Diagram Polaris TRAIL BOSS 4X4
- Model code
- W898127
- Year
- 1989
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7072823
Decal,shift pattern
No Longer Available; |
7072823 |
— | ||
|
2
|
2
1341055
Lever,shift,weld.
|
1341055 |
— | ||
| replacement | |||||
|
2
|
2
1341055-067 Shift lever, blk |
1341055-067 |
US $41.27 |
||
|
3
|
3
1040218
Plate, shift
|
1040218 |
— | ||
|
4
|
4
5410545 Knob, shift lever |
5410545 |
US $18.32 |
||
|
5
|
5
7621433 Rivet(50)50; |
7621433 |
US $0.79 |
||
|
6
|
6
7041227 Spring,shift lever |
7041227 |
US $7.09 |
||
|
7
|
7
5431106 Block,shift point |
5431106 |
US $37.63 |
||
|
8
|
8
7060141
Rod end, lh
|
7060141 |
— | ||
| replacement | |||||
|
8
|
8
7061013 Rod end,lh,6mm. |
7061013 |
US $89.79 |
||
|
9
|
9
7060142
Rod end, rh
|
7060142 |
— | ||
| replacement | |||||
|
9
|
9
7061014 Rod end,rh,6mm. |
7061014 |
US $89.79 |
||
|
10
|
10
7546701 Nut(10)10; |
7546701 |
US $1.49 |
||
|
11
|
11
7546702 Nut(10)10; |
7546702 |
US $1.49 |
||
|
12
|
12
5020538
Rod,shift linkage
|
5020538 |
— | ||
|
13
|
13
5610107
Lever, shift
No Longer Available; |
5610107 |
— | ||
|
14
|
14
7512208 Screw10; |
7512208 |
US $3.26 |
||
|
15
|
15
7546703
Nut,nylok
|
7546703 |
— | ||
|
16
|
16
7721113 Key, hi-pro |
7721113 |
US $1.49 |
||
|
17
|
17
7555803
Washer
10; |
7555803 |
— | ||
| replacement | |||||
|
17
|
17
7555806 Washer,flat(10)10; |
7555806 |
US $13.10 |
||
|
18
|
18
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
19
|
19
4110090
Switch,fwd,(4wd)
4WD; |
4110090 |
— | ||
|
20
|
20
7080390
Cap, plunger
|
7080390 |
— | ||
| replacement | |||||
|
20
|
20
7080379
Boot, o`ride sw.
|
7080379 |
— | ||
|
21
|
21
7080384
Nut,override switch
|
7080384 |
— | ||
