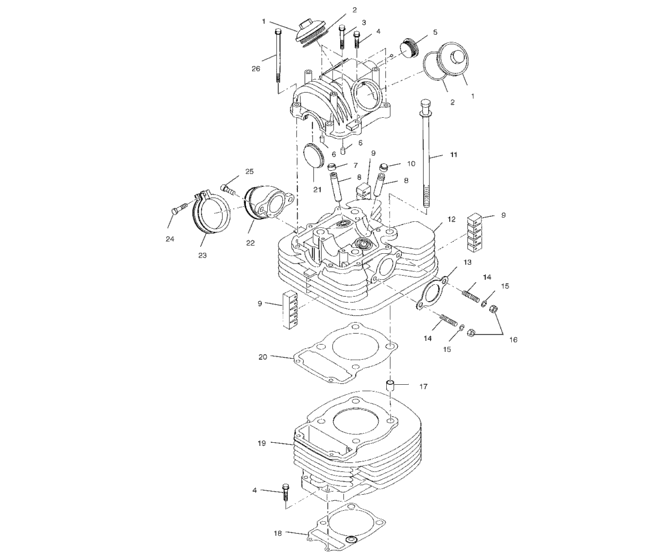

Cylinder (A01CK32AA) Diagram Polaris XPEDITION 325
- Model code
- A01CK32AA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3086413
Cover, valve
|
3086413 |
— | ||
|
2
|
2
3086414 O-ring |
3086414 |
US $25.08 |
||
|
3
|
3
3086412
Bolt, flange
|
3086412 |
— | ||
|
4
|
4
3084874 Bolt, flange |
3084874 |
US $1.77 |
||
|
5
|
5
3086417
Plug, cylinder block
|
3086417 |
— | ||
|
6
|
6
3086410 Pin,straight |
3086410 |
US $1.09 |
||
|
7
|
7
3084858 Seal,intake valve |
3084858 |
US $17.05 |
||
|
8
|
8
3084994 Guide,valve |
3084994 |
US $35.67 |
||
|
9
|
9
3084798 Fin damper a |
3084798 |
US $19.20 |
||
|
10
|
10
3084859 Seal,exhaust valve |
3084859 |
US $30.10 |
||
|
11
|
11
3086418 Asm,, bolt and washer |
3086418 |
US $12.11 |
||
|
12
|
12
3086796 Asm,,cylinder headIncl. 3,4,6-10, 12,14; |
3086796 |
US $841 |
||
|
13
|
13
3086421 Gasket, exhaust |
3086421 |
US $14.28 |
||
|
14
|
14
3085326 Stud(10)10; |
3085326 |
US $2.66 |
||
|
15
|
15
3080530 Washer, spring lock10; |
3080530 |
US $1.89 |
||
|
16
|
16
3080285
Nut
10; |
3080285 |
— | ||
|
17
|
17
3084838
Pin, straight
|
3084838 |
— | ||
|
18
|
18
3086407 Gasket-cylinder |
3086407 |
US $22.45 |
||
|
19
|
19
3086883
Cylinder,unit *
|
3086883 |
— | ||
|
20
|
20
3086415
Gasket-head
|
3086415 |
— | ||
|
21
|
21
3086416 Gasket-cam |
3086416 |
US $23.45 |
||
|
22
|
22
3087050 Asm,,adapter |
3087050 |
US $65.99 |
||
|
23
|
23
3083166
Asm-adapter band
Incl. 24; |
3083166 |
— | ||
|
24
|
24
3081497 Screw,pan head (10)10; |
3081497 |
US $0.79 |
||
|
25
|
25
3081330 Bolt, socket head |
3081330 |
US $3.26 |
||
|
26
|
26
3086419
Bolt, flange
|
3086419 |
— |
