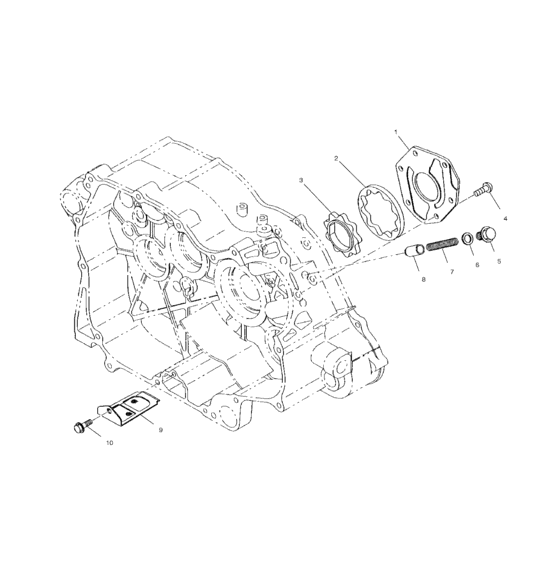

Oil pump (A00CK42AA) Diagram Polaris XPEDITION 425
- Model code
- A00CK42AA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3086218
Cover-Oil Pump
|
3086218 |
— | ||
|
2
|
2
3086220 Rotor,oil pump,outerOUTER; |
3086220 |
US $35.46 |
||
|
3
|
3
3086499 Pump,oil,innerINNER; |
3086499 |
US $35.46 |
||
|
4
|
4
3086900 Screw,countersunk |
3086900 |
US $2.45 |
||
|
5
|
5
3083453 Plug |
3083453 |
US $1.66 |
||
| replacement | |||||
|
5
|
5
3086749
Plug
|
3086749 |
— | ||
|
6
|
6
3082956 Gasket (10) |
3082956 |
US $34.10 |
||
|
7
|
7
3086223
Spring-relief valve
|
3086223 |
— | ||
|
8
|
8
3086222 Valve-oil relief |
3086222 |
US $6.11 |
||
|
9
|
9
3086221 Strainer-oil |
3086221 |
US $14.28 |
||
|
10
|
10
3083568
Bolt, flange
10; |
3083568 |
— | ||
| replacement | |||||
|
10
|
10
3087035
Bolt, flange
10; |
3087035 |
— | ||
