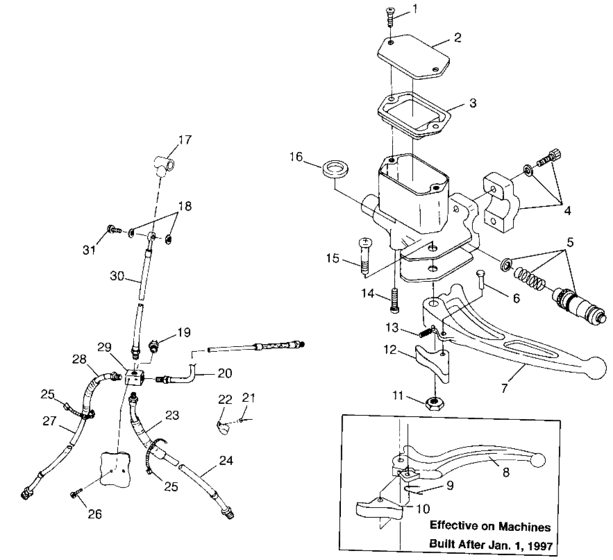

Controls (MASTER CYLINDER/BRAKE LINE XPLORER 300 W97CC28C) Diagram Polaris XPLORER 300
- Model code
- W97CC28C
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1930797 Bolt(2),res.cap,mcyl2; |
1930797 |
US $9.85 |
||
|
2
|
2
1930796 Cap,reservoir |
1930796 |
US $24.43 |
||
|
3
|
3
1930795 Diaphragm,res. |
1930795 |
US $39.38 |
||
|
4
|
4
2200808 Kit,m.cyl.clamp |
2200808 |
US $39.39 |
||
|
5
|
5
2200810
Kit,m.cyl.rebuild
|
2200810 |
— | ||
| replacement | |||||
|
5
|
5
1930799 Piston,mcyl,3/4" |
1930799 |
US $93.52 |
||
|
6
|
6
1930804
Rivet
|
1930804 |
— | ||
|
7
|
7
2200811
Kit,m.cyl lever
Incl. 6, 12, 13; |
2200811 |
— | ||
| replacement | |||||
|
7
|
7
2201034 Kit,leverIncl. 6, 12, 13; |
2201034 |
US $61.06 |
||
|
8
|
8
2201034 Kit,leverIncl. 6, 9, 10; |
2201034 |
US $61.06 |
||
|
10
|
10
2201090 Kit,lever,parkbrakeIncl. 6, 9; |
2201090 |
US $35.67 |
||
|
11
|
11
1930806
Nut,handle pivot
|
1930806 |
— | ||
|
12
|
12
1930802
Lever,parkbrake
|
1930802 |
— | ||
| replacement | |||||
|
12
|
12
2201034 Kit,lever |
2201034 |
US $61.06 |
||
|
13
|
13
1930803
Spring,parking brake
|
1930803 |
— | ||
| replacement | |||||
|
13
|
13
2201034 Kit,lever |
2201034 |
US $61.06 |
||
|
14
|
14
1930792 Bolt,reservoir (2) |
1930792 |
US $14.09 |
||
|
15
|
15
1930805
Bolt
|
1930805 |
— | ||
|
17
|
17
5411297 Boot,brakeline,rubber |
5411297 |
US $2.57 |
||
|
18
|
18
5410988
Seal
|
5410988 |
— | ||
|
19
|
19
4110164 Switch,stoplight |
4110164 |
US $34.49 |
||
|
20
|
20
1930751
Line,brake,rear
|
1930751 |
— | ||
|
21
|
21
7621462 Rivet(50)50; |
7621462 |
US $1.89 |
||
|
22
|
22
7080539 Clamp,nylon,cable10; |
7080539 |
US $2.45 |
||
|
23
|
23
8360031-30
Conduit
|
8360031-30 |
— | ||
| replacement | |||||
|
23
|
23
8360011-34 Convolute tubing-3/4"id,34cm (1 |
8360011-34 |
US $5.64 |
||
|
24
|
24
1930752 Line,brake,lh,fr,w/fittings |
1930752 |
US $88.64 |
||
|
25
|
25
7080272 Strap, blk |
7080272 |
US $3.64 |
||
|
26
|
26
7512027 Screw(10) *10; |
7512027 |
US $19.60 |
||
|
27
|
27
8360031-38 Conduit, 38 cm, |
8360031-38 |
US $3.26 |
||
|
28
|
28
1930753 Line,brake,rh,fr,w/fittings |
1930753 |
US $88.64 |
||
|
29
|
29
7052103
Fitting,cross invert,flare
|
7052103 |
— | ||
|
30
|
30
1930777
Line,hyd.brake
|
1930777 |
— | ||
| replacement | |||||
|
30
|
30
1930816
Brake line,300
|
1930816 |
— | ||
|
31
|
31
1930674
Bolt, banjo
|
1930674 |
— | ||
