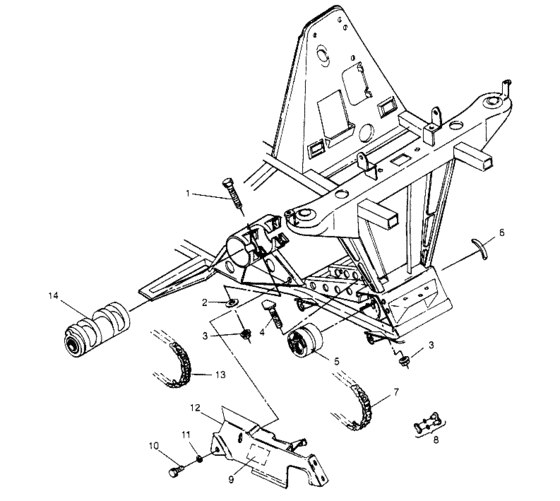

Front drive assembly (XPLORER 4X4 W959140) Diagram Polaris XPLORER
- Model code
- W959140
- Year
- 1995
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512583 Bolt(10)10; |
7512583 |
US $1.89 |
||
|
2
|
2
7555883 Washer10; |
7555883 |
US $2.98 |
||
|
3
|
3
7542503 Nut,flexlock,10; |
7542503 |
US $9.85 |
||
|
4
|
4
7512577
Bolt, flag
10; |
7512577 |
— | ||
|
6
|
6
5431095
Spacer,f.eccentric
|
5431095 |
— | ||
| replacement | |||||
|
6
|
6
5811519
Spacer,f.eccentric
|
5811519 |
— | ||
|
7
|
7
3224041
Chain, drive
|
3224041 |
— | ||
| replacement | |||||
|
7
|
7
3221193-064 Chain-520 ord4,o-ring,64 pitch |
3221193-064 |
US $91.60 |
||
|
8
|
8
3225024 Connector link |
3225024 |
US $9.15 |
||
|
9
|
9
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
10
|
10
7555776
Washer
10; |
7555776 |
— | ||
| replacement | |||||
|
10
|
10
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
11
|
11
5810493
Tape,foil,pan#3
|
5810493 |
— | ||
|
12
|
12
5431472
Guard,chain,front
|
5431472 |
— | ||
|
13
|
13
3224044
Chain, drive
70P; |
3224044 |
— | ||
| replacement | |||||
|
13
|
13
3224056-070
Chain, 70p
70P; |
3224056-070 |
— | ||
