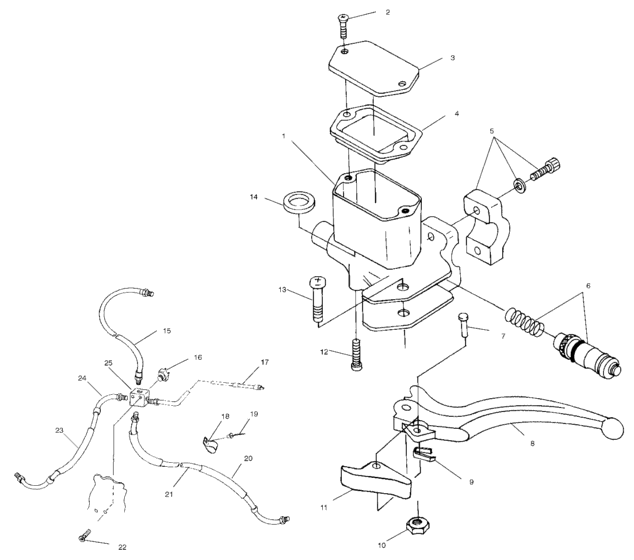

Controls (MASTER CYLINDER/BRAKE LINE) Diagram Polaris XPLORER
- Model code
- A00AG25CA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2200809 Kit,master cyl reservoirIncl. 2,3,4,14; |
2200809 |
US $64.02 |
||
|
1
|
1
2050073 Master cylinderIncl. 1-14; |
2050073 |
US $306.22 |
||
|
2
|
2
1930797 Bolt(2),res.cap,mcyl2; |
1930797 |
US $9.85 |
||
|
3
|
3
1930796 Cap,reservoir |
1930796 |
US $24.43 |
||
|
4
|
4
1930795 Diaphragm,res. |
1930795 |
US $39.38 |
||
|
5
|
5
2200808 Kit,m.cyl.clamp |
2200808 |
US $39.39 |
||
|
6
|
6
1930799 Piston,mcyl,3/4" |
1930799 |
US $93.52 |
||
|
7
|
7
1930804
Rivet
|
1930804 |
— | ||
|
8
|
8
2201034 Kit,leverIncl. 7, 9,11; |
2201034 |
US $61.06 |
||
|
10
|
10
1930806
Nut,handle pivot
|
1930806 |
— | ||
|
11
|
11
2201090 Kit,lever,parkbrakeIncl. 7,9; |
2201090 |
US $35.67 |
||
|
12
|
12
1930792 Bolt,reservoir (2) |
1930792 |
US $14.09 |
||
|
13
|
13
1930805
Bolt
|
1930805 |
— | ||
|
15
|
15
1910336
Line,brake,upper w/boot,ftgs
|
1910336 |
— | ||
|
16
|
16
4110164 Switch,stoplight |
4110164 |
US $34.49 |
||
|
17
|
17
1930873
Line,rear handbrake
|
1930873 |
— | ||
|
18
|
18
7080539 Clamp,nylon,cable10; |
7080539 |
US $2.45 |
||
|
19
|
19
7621462 Rivet(50)50; |
7621462 |
US $1.89 |
||
|
20
|
20
8360031-30
Conduit
|
8360031-30 |
— | ||
| replacement | |||||
|
20
|
20
8360011-34 Convolute tubing-3/4"id,34cm (1 |
8360011-34 |
US $5.64 |
||
|
21
|
21
1930752 Line,brake,lh,fr,w/fittings |
1930752 |
US $88.64 |
||
|
22
|
22
7512024 Screw10; |
7512024 |
US $2.45 |
||
|
23
|
23
8360011-38
Tubing, convoluted
|
8360011-38 |
— | ||
| replacement | |||||
|
23
|
23
8360011-34 Convolute tubing-3/4"id,34cm (1 |
8360011-34 |
US $5.64 |
||
|
24
|
24
1930753 Line,brake,rh,fr,w/fittings |
1930753 |
US $88.64 |
||
|
25
|
25
7052194 Fitting,cross,brake,atv |
7052194 |
US $51.70 |
||
