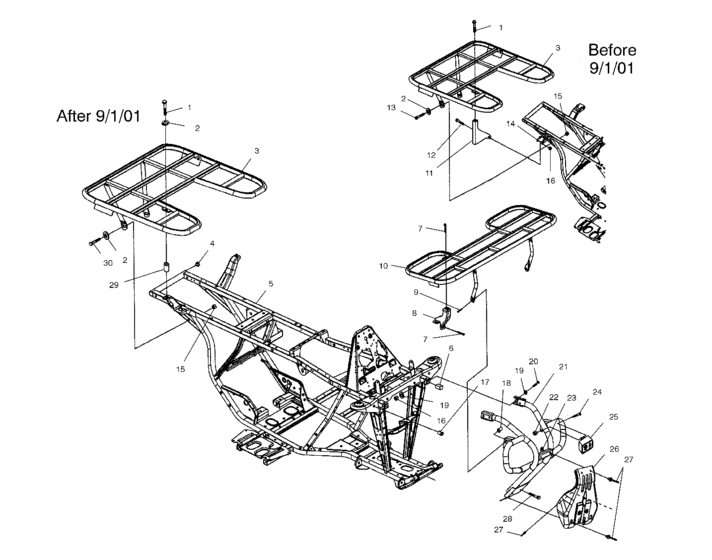

Bumper and rack mounting (A02CG25CA) Diagram Polaris XPLORER 4X4
- Model code
- A02CG25CA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517977
Bolt-5/16-18x2,25 flg tap/r-y
|
7517977 |
— | ||
|
2
|
2
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
3
|
3
1013682-067
Rack, rear
If built before 9/17/01; |
1013682-067 |
— | ||
|
3
|
3
1013834-067
Rack,rear,blk
If built after 9/17/01; |
1013834-067 |
— | ||
|
4
|
4
5432831 Plug,endcap,ribbed |
5432831 |
US $3.75 |
||
|
5
|
5
1013643-067
Weld-main,frame
|
1013643-067 |
— | ||
|
6
|
6
5810467 Plug, frame |
5810467 |
US $6.60 |
||
|
7
|
7
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
8
|
8
1013744-067 Weld-support rack,front,lh,blk |
1013744-067 |
US $138.64 |
||
|
8
|
8
1013746-067 Weld-support,rack,front,rh,blk |
1013746-067 |
US $114.99 |
||
|
9
|
9
7515399 Screw(10) * |
7515399 |
US $6.13 |
||
|
10
|
10
2632467-067
Front rack,blk
|
2632467-067 |
— | ||
|
11
|
11
1040524-067 Mnt,lh,frt,r,rack,blkBefore 9/1/01; |
1040524-067 |
US $152.34 |
||
|
11
|
11
1040525-067 Mnt,rh,frt,r,rack,blk,Before 9/1/01; |
1040525-067 |
US $152.34 |
||
|
12
|
12
7515385 ScrewBefore 9/1/01; |
7515385 |
US $3.94 |
||
|
13
|
13
7517686 Screw (10)Before 9/1/01; |
7517686 |
US $1.89 |
||
|
14
|
14
5333332-067 SpacerBefore 9/1/01; |
5333332-067 |
US $8.17 |
||
|
15
|
15
7542321 Nut,flange(10) |
7542321 |
US $1.89 |
||
|
16
|
16
7542324 Nut,nylok(10)Qty 4 Before 9/1/01; |
7542324 |
US $26.30 |
||
|
17
|
17
7547069 Nutsert,hex |
7547069 |
US $3.26 |
||
|
18
|
18
7547101 Nutsert-5/16-18(,027-,150),hxy |
7547101 |
US $7.68 |
||
|
19
|
19
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
20
|
20
7512329 Bolt |
7512329 |
US $4.59 |
||
|
21
|
21
1013674-067
Weld-front bumper,blk
|
1013674-067 |
— | ||
|
22
|
22
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
23
|
23
7555827 Washer |
7555827 |
US $3.26 |
||
|
24
|
24
7515189 Screw(10) * |
7515189 |
US $1.89 |
||
|
25
|
25
2410285
Asm-headlight,30/30w,top mnt
|
2410285 |
— | ||
|
26
|
26
5432378-070 Plate,skid,bumper,blk |
5432378-070 |
US $76.81 |
||
|
27
|
27
7661121 Rivet-1/4"multigrip,,08-,35,b ( |
7661121 |
US $1.89 |
||
|
28
|
28
7515399 Screw(10) * |
7515399 |
US $6.13 |
||
|
29
|
29
5334092 Spacer-,375x,75x1,56,bAfter 9/1/01; |
5334092 |
US $7.18 |
||
|
30
|
30
7512329 BoltAfter 9/1/01; |
7512329 |
US $4.59 |
