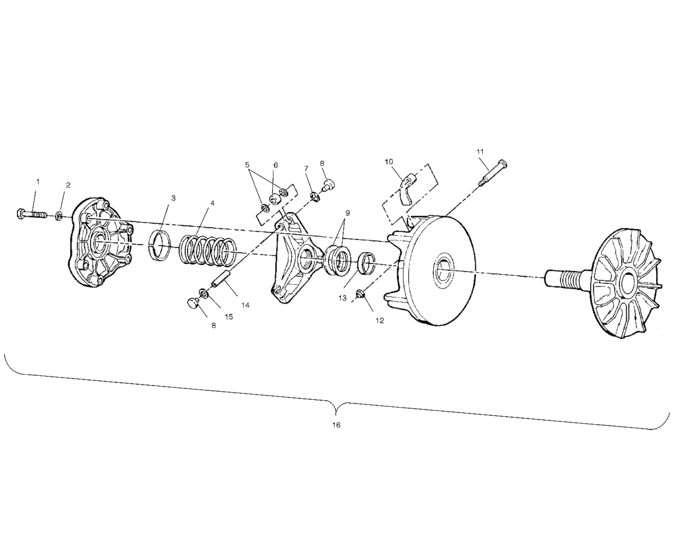

Drive clutch (A02CG25CA) Diagram Polaris XPLORER 4X4
- Model code
- A02CG25CA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512176
Bolt
|
7512176 |
— | ||
| replacement | |||||
|
1
|
1
7512163 Bolt |
7512163 |
US $2.45 |
||
|
2
|
2
7552801 Washer, spring lock(10) |
7552801 |
US $2.45 |
||
|
3
|
3
3576510 Bearing, cover,(10) |
3576510 |
US $9.85 |
||
|
4
|
4
7041157 Spring,clutch |
7041157 |
US $35.67 |
||
|
5
|
5
5430945 Washer(10) |
5430945 |
US $65.60 |
||
| replacement | |||||
|
5
|
5
5438247 Washer-clutch,spider roller |
5438247 |
US $26.30 |
||
|
6
|
6
1321457 Roller/bushing asm,(3) ** |
1321457 |
US $26.60 |
||
|
7
|
7
5410610 O ring(10) |
5410610 |
US $2.28 |
||
|
8
|
8
5430768 Button, guide(10) |
5430768 |
US $6.11 |
||
|
9
|
9
5210752 Spacer,,020(10).020"; |
5210752 |
US $0.49 |
||
|
9
|
9
5242981 Spacer,,025.025"; |
5242981 |
US $3.38 |
||
|
9
|
9
5210753 Spacer,,032.032"; |
5210753 |
US $1.98 |
||
|
9
|
9
5210754 Spacer,,050.050"; |
5210754 |
US $2.77 |
||
|
10
|
10
5630515
Wt,shift, f(6)
F; |
5630515 |
— | ||
|
11
|
11
7512266 Bolt,shoulder(10) |
7512266 |
US $3.94 |
||
|
12
|
12
7541906 Nut flexloc(10) |
7541906 |
US $52.50 |
||
|
13
|
13
3576504 Bushing,moveable,1/2 inch |
3576504 |
US $21.49 |
||
|
14
|
14
5020795 Pin, spider |
5020795 |
US $14.09 |
||
|
15
|
15
5410609 Washer, rubber (10) |
5410609 |
US $1.89 |
||
|
16
|
16
1321635
Asm., drive clutch, atv-08
Incl. All Less 4,10; |
1321635 |
— | ||
