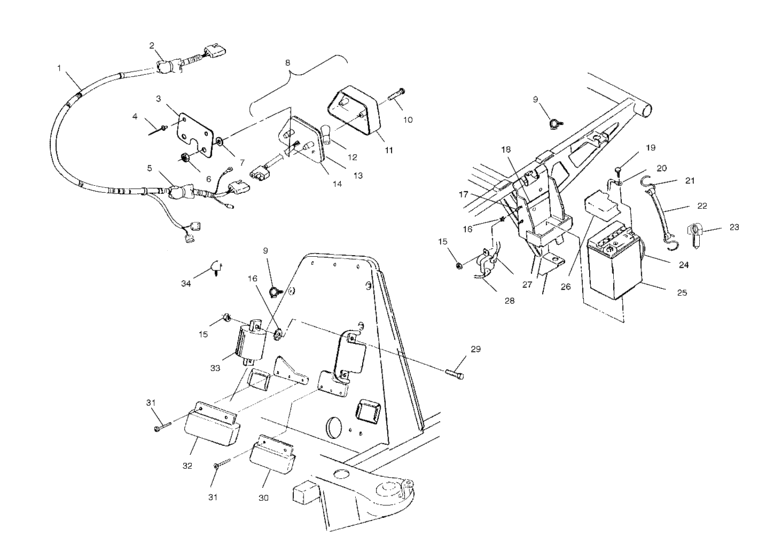

Electrical/taillight (A02CG25CA) Diagram Polaris XPLORER 4X4
- Model code
- A02CG25CA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2460941 Harness-main,xplorer 250 |
2460941 |
US $379.16 |
||
|
2
|
2
2201795 Kit-circut breaker,fan |
2201795 |
US $47.67 |
||
|
3
|
3
5211391-067 Isolator,taillight |
5211391-067 |
US $21.11 |
||
|
4
|
4
7621470 Rivet(50) |
7621470 |
US $1.89 |
||
|
5
|
5
2200593 Kit,ckt,brkr,20 amp |
2200593 |
US $45.69 |
||
|
6
|
6
7670054
Nut, push-on (10)
|
7670054 |
— | ||
|
7
|
7
7555916 Washer,nylon |
7555916 |
US $2.45 |
||
|
8
|
8
2432034 Tail light asm,Incl. 11-6; |
2432034 |
US $51.21 |
||
|
9
|
9
4020149 Clip,rosebud |
4020149 |
US $7.88 |
||
|
10
|
10
4032029 Screw |
4032029 |
US $2.98 |
||
|
11
|
11
4032046 Lens,taillight |
4032046 |
US $18.32 |
||
|
12
|
12
4030043 Bulb |
4030043 |
US $4.94 |
||
|
13
|
13
4032045 Gasket |
4032045 |
US $5.11 |
||
|
14
|
14
4032064 Backing,taillight |
4032064 |
US $81.76 |
||
|
15
|
15
7541925
Nut, nylok 10-24 y
|
7541925 |
— | ||
|
16
|
16
7571602 Washer |
7571602 |
US $2.45 |
||
|
17
|
17
7512027 Screw(10) * |
7512027 |
US $19.60 |
||
|
18
|
18
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
19
|
19
2200361 Kit-battery bolt (short)Short; |
2200361 |
US $1.77 |
||
|
20
|
20
4010095
Cable,batt/eng,,blk,
|
4010095 |
— | ||
|
21
|
21
7010032 Hook-battery strap(10) |
7010032 |
US $26.30 |
||
|
22
|
22
5410424
Strap, battery holddown
|
5410424 |
— | ||
|
23
|
23
7670102 Clip |
7670102 |
US $5.25 |
||
|
24
|
24
5432077 Tube,vent |
5432077 |
US $6.11 |
||
|
25
|
25
4140006 Battery |
4140006 |
US $275.60 |
||
|
26
|
26
5431769 Cover,battery |
5431769 |
US $13.20 |
||
|
27
|
27
4010094 Cable,batt/solenoid,red |
4010094 |
US $30.54 |
||
|
28
|
28
4010129 Cable,sol/start,dblboot |
4010129 |
US $40.37 |
||
|
29
|
29
7512007 Bolt |
7512007 |
US $2.45 |
||
|
30
|
30
4060208
Rectifier/regulator,lr39-1
|
4060208 |
— | ||
|
31
|
31
7512024 Screw |
7512024 |
US $2.45 |
||
|
32
|
32
4010188
Limiter-rpm,hub,ground,lr83-1
|
4010188 |
— | ||
|
34
|
34
7670109 Clip-routing |
7670109 |
US $3.75 |
