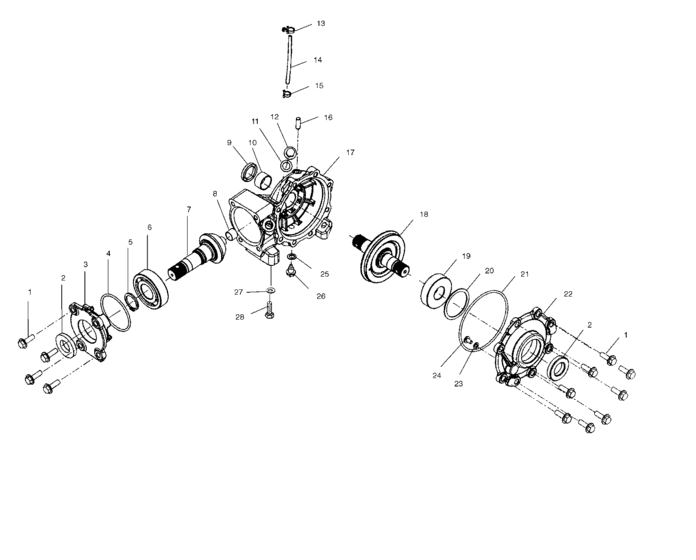

Front housing (A02CG25CA) Diagram Polaris XPLORER 4X4
- Model code
- A02CG25CA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3233252 Screw |
3233252 |
US $8.87 |
||
|
2
|
2
3233248
Seal
|
3233248 |
— | ||
|
3
|
3
3233701 Input cover-front housing |
3233701 |
US $48.84 |
||
|
4
|
4
3233700 O-ring |
3233700 |
US $5.90 |
||
|
5
|
5
3233699 Ring-retaining |
3233699 |
US $2.98 |
||
|
6
|
6
3233589 Bearing,ball |
3233589 |
US $73.83 |
||
|
7
|
7
3233726
Pinion,input,14t
|
3233726 |
— | ||
|
8
|
8
3233541 Bushing,garlock |
3233541 |
US $30.19 |
||
|
9
|
9
3233319 Seal |
3233319 |
US $18.73 |
||
|
10
|
10
3233697
Bushinhg-garlock
|
3233697 |
— | ||
|
11
|
11
3233324 Washer |
3233324 |
US $3.26 |
||
|
12
|
12
3233711 Plug,oil fill |
3233711 |
US $20.69 |
||
|
13
|
13
7080756 Clip,snap-in |
7080756 |
US $3.26 |
||
|
14
|
14
8450003-1525 Line,fuel,1/4 id(1525 cm,) |
8450003-1525 |
US $85.45 |
||
|
15
|
15
7080307 Clamp,hose(10) |
7080307 |
US $0.79 |
||
|
16
|
16
3233524 Tube,vent |
3233524 |
US $6.11 |
||
|
17
|
17
3233696 Gearcase |
3233696 |
US $471.50 |
||
|
18
|
18
3233725
Shaft,output,29t
|
3233725 |
— | ||
|
19
|
19
3233020 Bearing |
3233020 |
US $54.18 |
||
|
20
|
20
3233554 Shim |
3233554 |
US $14.28 |
||
|
21
|
21
3233693 O-ring |
3233693 |
US $4.24 |
||
|
22
|
22
3233724
Cover,output
|
3233724 |
— | ||
|
23
|
23
3233583 Shim ,450 x ,265 |
3233583 |
US $9.12 |
||
|
24
|
24
3233582 Button,thrust |
3233582 |
US $2.66 |
||
|
25
|
25
3233254 Washer,plug |
3233254 |
US $4.73 |
||
|
26
|
26
3233253
Plug, drain
|
3233253 |
— | ||
| replacement | |||||
|
26
|
26
3233777 Plug-hex flange |
3233777 |
US $19.30 |
||
|
27
|
27
7512492 Screw(10) |
7512492 |
US $39.40 |
||
|
28
|
28
7552603 Washer,spring lock(10) |
7552603 |
US $26.30 |
||
