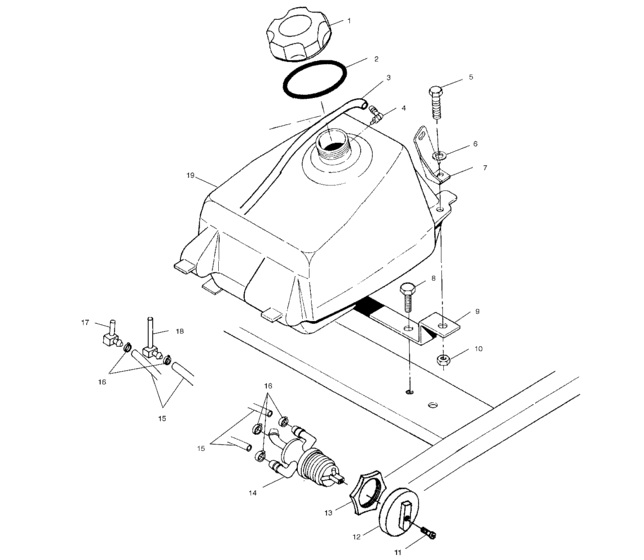

Fuel tank (A02CG25CA) Diagram Polaris XPLORER 4X4
- Model code
- A02CG25CA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5433687 Cap,gas tankIncl. 2; |
5433687 |
US $24.08 |
||
|
2
|
2
5812123 Gasket |
5812123 |
US $10.03 |
||
|
3
|
3
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
4
|
4
5431053 Vent, tank |
5431053 |
US $10.15 |
||
|
5
|
5
7512310 Screw(10) |
7512310 |
US $0.79 |
||
|
6
|
6
7555893 Washer,flat(10) |
7555893 |
US $0.79 |
||
|
7
|
7
5222155-067
Bracket, fuel cover mount, rear, rh
|
5222155-067 |
— | ||
|
7
|
7
5222154-067
Bracket, fuel cover mount, rear, lh
|
5222154-067 |
— | ||
|
8
|
8
7512208 Screw |
7512208 |
US $3.26 |
||
|
9
|
9
5220916-067
Brkt,r,tank mt,blk,
|
5220916-067 |
— | ||
|
10
|
10
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
11
|
11
7517505 Screw(10) |
7517505 |
US $1.49 |
||
|
12
|
12
5432559 Knob,fuel valve |
5432559 |
US $9.15 |
||
|
13
|
13
5432733 Nut,fuel valve |
5432733 |
US $2.98 |
||
|
14
|
14
7052154 Valve,3-way,horiz ports |
7052154 |
US $35.67 |
||
|
15
|
15
8450040-600 Line fuel,1/4 id(600 cm,) |
8450040-600 |
US $65.99 |
||
|
16
|
16
7080003 Clamp,hose(10) |
7080003 |
US $0.79 |
||
|
17
|
17
7052148
Fitting, fuel outlet, reserve, 90 degree
|
7052148 |
— | ||
|
18
|
18
7052147
Fitting, fuel outlet, main, 90 degree
|
7052147 |
— | ||
|
19
|
19
1240123 Asm-fuel tankIncl. 4,18; |
1240123 |
US $147.72 |
