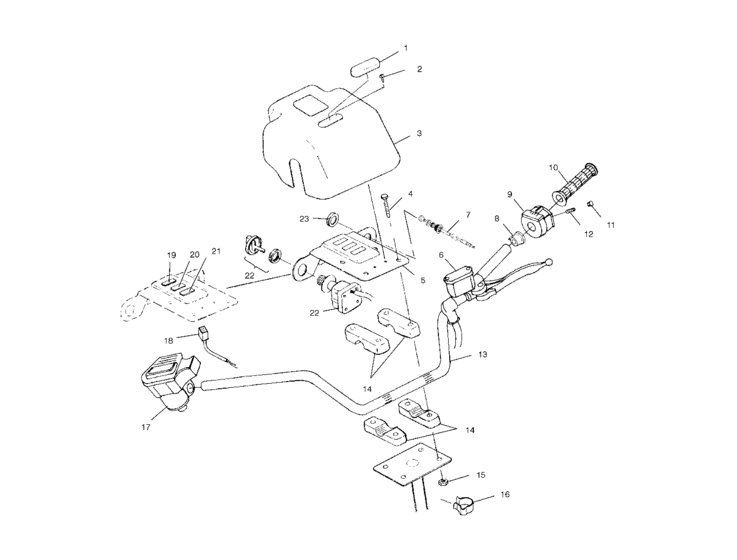

Handlebar (A02CG25CA) Diagram Polaris XPLORER 4X4

Model code
A02CG25CA
Year
2002
Sales region
General

Difficulties in parts search?

Parts list
Handlebar

Difficulties in parts search?

Handlebar
Description OEM Part # Price
1
1
5432247-070
Cover-logo, blk

5432247-070

2
2

7512024

Screw

7512024

US $2.45

3
3
5433842-070
Panel,instrument,black

5433842-070

4
4
7517216
Screw

7517216

5
5
5244292-067
Brkt-instrument,panel,blk

5244292-067

7
7

7081008

Cable-choke,friction,40"

7081008

US $70.89

8
8

5433903

Spacer-switch,lh,99

5433903

US $10.61

9
9
4010423
Switch, handlebar, hi/lo/off

4010423

10
10

5433834-070

Grip-hndlbar,7/8 id,black

5433834-070

US $16.24

11
11

5432952

Plug,hole

5432952

US $3.15

12
12

7517625

Screw,set

7517625

US $2.98

13
13

5224715-067

Handlebar,tube,blk

5224715-067

US $114.40

14
14

5630629

Block,h'bar,(300)

5630629

US $14.28

15
15

7542122

Nut-nylok(10)

7542122

US $26.30

16
16

7080631

Clip,cable retain,(10) *

7080631

US $9.38

18
18

2460777

Harness-indicator,t,blazer,con

2460777

US $17.24

19
19

4040054

Indic"neut,/rev,"

4040054

US $25.43

20
20

4040053

Indic"hot temperature"

4040053

US $34.46

21
21

5430967

Plug,indic,hole

5430967

US $3.64

22
22
4010390
Switch, ignition

4010390

replacement
22
22

4012164

Switch-ignition,keystart,mt sl

4012164

US $125.49

22
22

4010278

Key blank (20/21/67/68) series

4010278

US $12.81

22
22

4010321

Key blank (22/23/27/28) series

NOTE: Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.;

4010321

US $14.77

22
22

5433733

Nut,ignition switch

5433733

US $14.09

22
22

5433534

Key cover-keyswitch

5433534

US $19.69

23
23

7080922

Nut,choke,m24x1,5 thd,m29 hex

7080922

US $4.73
