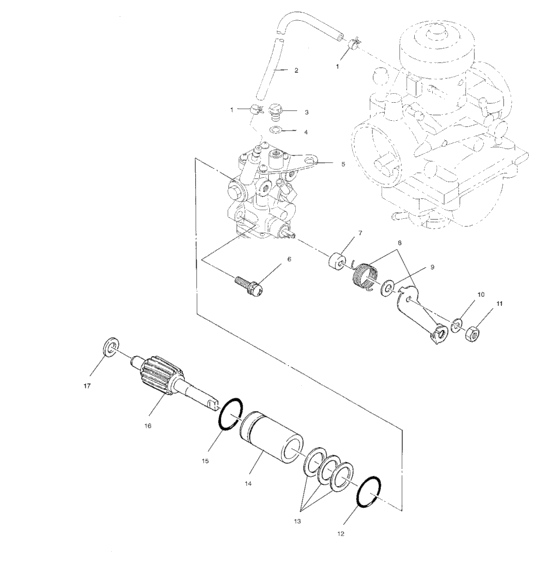

Oil pump (A02CG25CA) Diagram Polaris XPLORER 4X4
- Model code
- A02CG25CA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3083141 Clamp-hose(10) |
3083141 |
US $1.89 |
||
|
2
|
2
3087047
Pipe-vinyl
|
3087047 |
— | ||
|
3
|
3
3083125 Screw-air vent |
3083125 |
US $16.24 |
||
|
4
|
4
3083126 Packing(10) |
3083126 |
US $1.89 |
||
|
5
|
5
3087044
Asm., oil pump
Incl. 3,4,7-12; |
3087044 |
— | ||
|
6
|
6
3086778
Asm., screw and washer
|
3086778 |
— | ||
| replacement | |||||
|
6
|
6
3083783 Asm,,screw & washer |
3083783 |
US $0.79 |
||
|
7
|
7
3083758 Cap |
3083758 |
US $7.09 |
||
|
8
|
8
3086844 Spring&lever |
3086844 |
US $86.68 |
||
|
8
|
8
3086845
Lever, control
|
3086845 |
— | ||
| replacement | |||||
|
8
|
8
3086844 Spring&lever |
3086844 |
US $86.68 |
||
|
9
|
9
3083757 Collar, camshaft |
3083757 |
US $5.43 |
||
|
10
|
10
3083121 Washer-spring(10) |
3083121 |
US $1.89 |
||
|
11
|
11
3083120 Nut(10) |
3083120 |
US $1.89 |
||
|
12
|
12
3083127 O ring |
3083127 |
US $12.20 |
||
|
13
|
13
3083671 Spacer 1,,15mm.15mm; |
3083671 |
US $2.45 |
||
|
13
|
13
3083672 Spacer 2,,3mm.3mm; |
3083672 |
US $2.45 |
||
|
13
|
13
3083673 Spacer 3,,6mm.6mm; |
3083673 |
US $2.45 |
||
|
14
|
14
3083353 Bushing |
3083353 |
US $34.49 |
||
|
15
|
15
3083129 O ring |
3083129 |
US $13.20 |
||
|
16
|
16
3083429 Gear, small |
3083429 |
US $111.30 |
||
|
17
|
17
3083428 Spacer |
3083428 |
US $1.28 |
||
