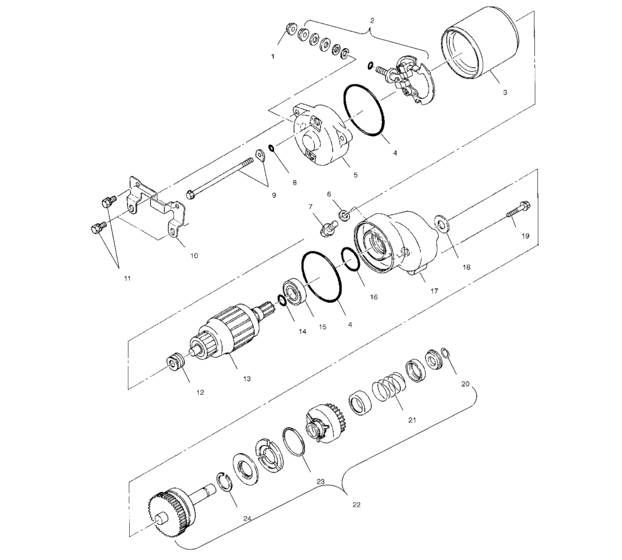

Starting motor (A02CG25CA) Diagram Polaris XPLORER 4X4
- Model code
- A02CG25CA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3083649 Nut, flange(10) |
3083649 |
US $1.89 |
||
|
2
|
2
3084406
Brush, carbon, set
|
3084406 |
— | ||
|
3
|
3
3087043
Asm-starting motor
Incl. 1-5,8,9,12-18,20-24; |
3087043 |
— | ||
|
3
|
3
3085393
Starter motor asm, *
Incl. 1,2,4,5,8,9,12-17; |
3085393 |
— | ||
|
4
|
4
3084405 Ring, rubber (10) |
3084405 |
US $3.75 |
||
|
5
|
5
3085032 Cover,rear,starter |
3085032 |
US $101.45 |
||
|
6
|
6
3082758
Gasket, alum
|
3082758 |
— | ||
| replacement | |||||
|
6
|
6
7555998 Washer,flat(10) * |
7555998 |
US $0.79 |
||
|
7
|
7
3086782
Bolt, flange
|
3086782 |
— | ||
| replacement | |||||
|
7
|
7
3087035
Bolt, flange
|
3087035 |
— | ||
|
8
|
8
3084408 O-ring |
3084408 |
US $9.15 |
||
|
9
|
9
3084407 Bolt, through |
3084407 |
US $3.26 |
||
|
10
|
10
3083650
Bracket
|
3083650 |
— | ||
|
11
|
11
3081665 Asm,, bolt and washer(10) |
3081665 |
US $1.77 |
||
|
12
|
12
3083754 Washer set |
3083754 |
US $2.98 |
||
|
13
|
13
3084404 Armature asm, *Incl. 14,15; |
3084404 |
US $256.04 |
||
|
14
|
14
3083934 O ring |
3083934 |
US $3.26 |
||
|
15
|
15
3083777 Ball bearing * |
3083777 |
US $36.45 |
||
|
16
|
16
3083741
O ring
|
3083741 |
— | ||
|
17
|
17
3085305
Cover, front
Incl. 16; |
3085305 |
— | ||
|
18
|
18
3083737
Washer
|
3083737 |
— | ||
| replacement | |||||
|
18
|
18
7555908 Washer |
7555908 |
US $5.22 |
||
|
19
|
19
3082038 Bolt&washer asm, |
3082038 |
US $1.49 |
||
|
20
|
20
3084409 Clip |
3084409 |
US $4.73 |
||
|
21
|
21
3084410 Spring, return |
3084410 |
US $3.06 |
||
|
22
|
22
3087030
Asm., gear shaft
Incl. 18,20,21,23,24; |
3087030 |
— | ||
| replacement | |||||
|
22
|
22
3090034 Asm-gear shaftIncl. 18,20,21,23,24; |
3090034 |
US $288.75 |
||
|
23
|
23
3084411 Spring, weight |
3084411 |
US $19.30 |
||
|
24
|
24
3084412 Clip |
3084412 |
US $7.68 |
||
