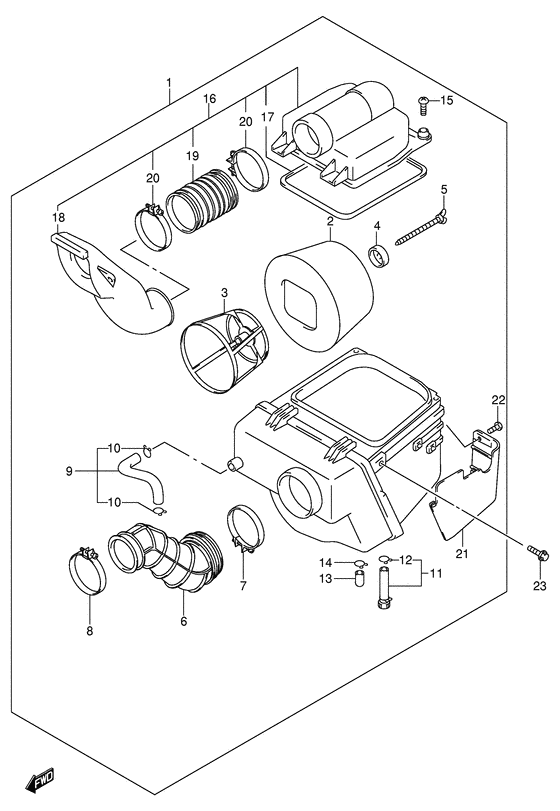

Air cleaner Diagram Suzuki LT-A500 QuadMaster
- Model code
- LT-A500F Y
- Engine Capacity
- 493
- Year
- 2000
- Sales region
- USA/Canada (E3/E28)
- Frame
- JSAAM42A*Y2100001~
- Model
- QuadMaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-09F50-000
Cleaner assy, air
|
13700-09F50-000 |
— | ||
|
2
|
2
13780-09F00-000 FILTER |
13780-09F00-000 |
US $42.35 |
||
|
3
|
3
13791-04F00-000 HOLDER |
13791-04F00-000 |
from US $9.94 |
||
|
4
|
4
13792-13A01-000 WASHER,AIR CLEANERWasher |
13792-13A01-000 |
from US $1.92 |
||
|
5
|
5
09119-06062-000
Bolt, wing
|
09119-06062-000 |
— | ||
| replacement | |||||
|
5
|
5
09119-06134-000 Bolt |
09119-06134-000 |
from US $4.13 |
||
|
6
|
6
13881-09F50-000
Tube, outlet
|
13881-09F50-000 |
— | ||
|
7
|
7
09402-88208-000 CLAMP |
09402-88208-000 |
US $10.35 |
||
|
8
|
8
09402-56208-000
Clamp
Clamp; |
09402-56208-000 |
— | ||
| replacement | |||||
|
8
|
8
09402-56901-000 CLAMPClamp; |
09402-56901-000 |
from US $2.28 |
||
|
9
|
9
13850-09F50-000 TUBE,BREATHERTube, breather |
13850-09F50-000 |
from US $12.36 |
||
|
10
|
10
09401-14301-000 CLIPClip Clip; |
09401-14301-000 |
from US $2.13 |
||
|
11
|
11
13870-09F50-000 TUBE,DRAINTube, drain |
13870-09F50-000 |
from US $6.70 |
||
|
12
|
12
09401-14301-000 CLIPClip Clip; |
09401-14301-000 |
from US $2.13 |
||
|
13
|
13
13859-41B10-000 PLUGPlug, breather; |
13859-41B10-000 |
from US $2.89 |
||
|
14
|
14
09401-14301-000 CLIPClip Clip; |
09401-14301-000 |
from US $2.13 |
||
|
15
|
15
02142-05163-000
Bolt
Screw; |
02142-05163-000 |
— | ||
| replacements | |||||
|
15
|
15
02142-0516B-000 SCREWScrew; |
02142-0516B-000 |
from US $0.80 |
||
|
15
|
15
02142-0516A-000 SCREWScrew Screw; |
02142-0516A-000 |
from US $0.76 |
||
|
16
|
16
13890-09F00-000
INLET,AIR CLEANER
|
13890-09F00-000 |
— | ||
| replacement | |||||
|
16
|
16
13890-09F01-000 Inlet,air Cleaner |
13890-09F01-000 |
US $64.03 |
||
|
17
|
17
13746-09F00-000
GASKET
|
13746-09F00-000 |
— | ||
|
18
|
18
13896-09F00-000
DUCT,INLET
|
13896-09F00-000 |
— | ||
|
19
|
19
13891-09F00-000
JOINT,INLET
|
13891-09F00-000 |
— | ||
|
20
|
20
09402-60208-000 CLAMPClamp, silencer |
09402-60208-000 |
from US $1.98 |
||
|
21
|
21
13841-09F00-000
HEAT GUARD,AIR CLEANER
|
13841-09F00-000 |
— | ||
|
22
|
22
13831-06F00-000 SCREWScrew, tapping Screw, tapping; |
13831-06F00-000 |
US $1.84 |
||
|
23
|
23
09103-06083-000
Bolt (6x12)
|
09103-06083-000 |
— | ||
| replacement | |||||
|
23
|
23
09103-06285-000 BOLT(6X12)Bolt (6x12) |
09103-06285-000 |
from US $1.28 |
||
