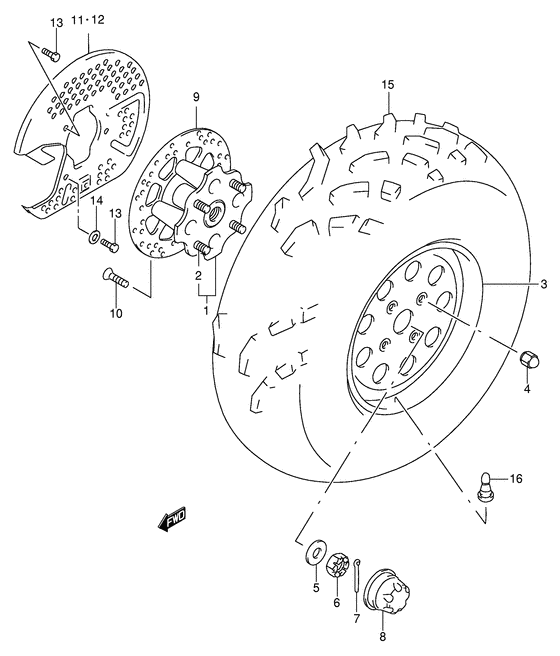

Front wheel Diagram Suzuki LT-A500 QuadMaster
- Model code
- LT-A500F Y
- Engine Capacity
- 493
- Year
- 2000
- Sales region
- USA/Canada (E3/E28)
- Frame
- JSAAM42A*Y2100001~
- Model
- QuadMaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54110-09F10-000
Hub, front wheel
|
54110-09F10-000 |
— | ||
| replacement | |||||
|
1
|
1
54110-09F11-000
HUB,FR
|
54110-09F11-000 |
— | ||
|
2
|
2
09119-10049-000
Bolt (10x30)
Bolt (10x30); |
09119-10049-000 |
— | ||
| replacement | |||||
|
2
|
2
09119-10049-XC0 BOLTBolt (10x30); |
09119-10049-XC0 |
from US $2.24 |
||
|
3
|
3
55310-09F10-12Z
Rim, front wheel (12x6.5at)
Rim, front wheel (12x6.5at) (silver); |
55310-09F10-12Z |
— | ||
| replacement | |||||
|
3
|
3
55310-09F11-12Z RIM,FR WHEEL(12X6.5AT)Rim, front wheel (12x6.5at) (silver) Rim, front wheel (12x6.5at) (silver); |
55310-09F11-12Z |
from US $408.32 |
||
|
4
|
4
09159-10012-000 NUTNut, rim Nut, rim; Model y |
09159-10012-000 |
from US $2.90 |
||
|
4
|
4
09140-10029-000
Nut
Model k1 |
09140-10029-000 |
— | ||
| replacement | |||||
|
4
|
4
09140-10021-000 NUTModel k1 |
09140-10021-000 |
from US $1.67 |
||
|
5
|
5
09164-18004-000 WASHERWasher, hub |
09164-18004-000 |
from US $3.20 |
||
|
6
|
6
09141-18008-000 NUTNut, hub (white) Nut, hub; |
09141-18008-000 |
from US $11.29 |
||
|
7
|
7
04111-40408-000
Pin, cotter
Pin, cotter; |
04111-40408-000 |
— | ||
| replacement | |||||
|
7
|
7
04111-4040A-000 PINPin, cotter; |
04111-4040A-000 |
from US $0.80 |
||
|
8
|
8
54725-09F01-000 CAP,WHEEL CTR |
54725-09F01-000 |
US $13.43 |
||
|
9
|
9
59211-09F10-000 DISC,FR BRAKEDisk, front brake Disk, front brake; |
59211-09F10-000 |
from US $159.71 |
||
|
10
|
10
59421-03A10-000
Bolt,rear disc
Bolt, brake disc (8x20); |
59421-03A10-000 |
— | ||
| replacement | |||||
|
10
|
10
09106-08155-000 BOLT(8X20)Bolt, brake disc Bolt, brake disc (8x20); |
09106-08155-000 |
from US $1.33 |
||
|
11
|
11
59230-09F10-000
Cover, front disc rh
|
59230-09F10-000 |
— | ||
| replacement | |||||
|
11
|
11
59230-09F11-000
COVER,FR DISC,R
|
59230-09F11-000 |
— | ||
|
12
|
12
59430-09F10-000
Cover, front disc lh
|
59430-09F10-000 |
— | ||
| replacement | |||||
|
12
|
12
59430-09F11-000
COVER,FR DISC,L
|
59430-09F11-000 |
— | ||
|
13
|
13
09100-06163-000
BOLT(6X12)
Bolt (6x12); |
09100-06163-000 |
— | ||
|
14
|
14
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
15
|
15
55110-09F10-000
Tire, front (at25x8-12)
Tire, front (at25x8-12) (dunlop); |
55110-09F10-000 |
— | ||
|
16
|
16
43130-24A00-000 VALVE ASSY, WHEEL RIM(TR412)Valve assy, wheel rim (tr412) Valve assy, wheel rim (tr412); |
43130-24A00-000 |
from US $4.41 |
||
