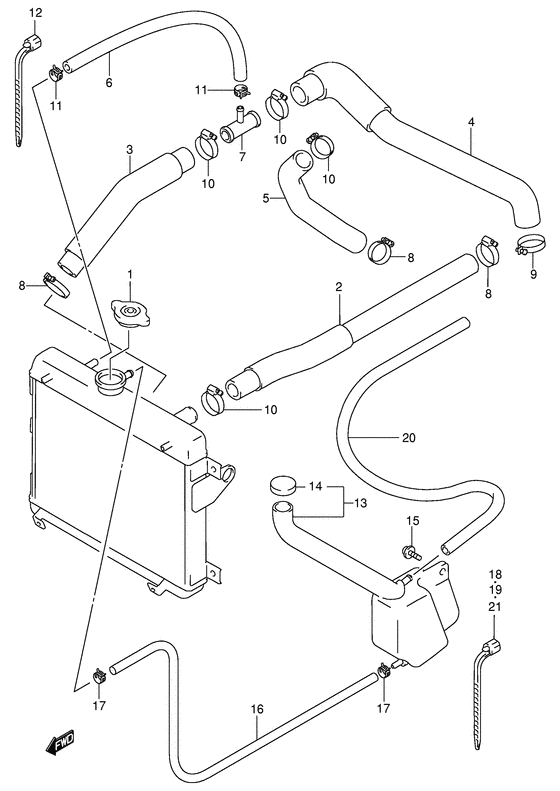

Radiator hose Diagram Suzuki LT-A500 QuadMaster
- Model code
- LT-A500F Y
- Engine Capacity
- 493
- Year
- 2000
- Sales region
- USA/Canada (E3/E28)
- Frame
- JSAAM42A*Y2100001~
- Model
- QuadMaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17730-12C20-000
Cap
Cap, radiator; |
17730-12C20-000 |
— | ||
| replacement | |||||
|
1
|
1
17730-08J00-000 CAP,RADIATORCap, radiator; |
17730-08J00-000 |
from US $14.90 |
||
|
2
|
2
17851-09F50-000
HOSE,RADIATOR INLET
|
17851-09F50-000 |
— | ||
|
3
|
3
17852-09F00-000 HOSE,RADIATOR OUTLETHose, radiator outlet |
17852-09F00-000 |
US $24.27 |
||
|
4
|
4
17853-09F50-000
HOSE,WATER PUMP INLET
|
17853-09F50-000 |
— | ||
|
5
|
5
17854-09F50-000
HOSE,WATER PUMP OUTLET
|
17854-09F50-000 |
— | ||
|
6
|
6
17855-09F00-000
Hose, radiator bypass
|
17855-09F00-000 |
— | ||
| replacement | |||||
|
6
|
6
17854-24F00-000 HOSE,WATER BYPASS NO.1 |
17854-24F00-000 |
from US $11.22 |
||
|
7
|
7
17890-17E01-000
UNION,HOSE JOINT
|
17890-17E01-000 |
— | ||
|
8
|
8
09402-32511-000 CLAMP |
09402-32511-000 |
from US $6.08 |
||
|
9
|
9
09402-32511-000 CLAMP |
09402-32511-000 |
from US $6.08 |
||
|
10
|
10
09402-32511-000 CLAMP |
09402-32511-000 |
from US $6.08 |
||
|
11
|
11
09401-12409-000
Clip
Clip; |
09401-12409-000 |
— | ||
| replacement | |||||
|
11
|
11
09401-12414-000 CLIPClip; |
09401-12414-000 |
from US $1.60 |
||
|
12
|
12
09407-25401-000 CLAMP(L:235)Clamp (l:235) Clamp, water hose no.1 (l:235); |
09407-25401-000 |
from US $2.08 |
||
|
12
|
12
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp, water hose no.2 (l:165); |
09407-18402-000 |
from US $1.98 |
||
|
13
|
13
17910-09F00-000
Tank assy, reservoir
|
17910-09F00-000 |
— | ||
|
14
|
14
17932-12C00-000 CAP,RESERVOIR TANKCap, reservoir tank Cap, reservoir tank; |
17932-12C00-000 |
from US $5.92 |
||
|
15
|
15
09136-06017-000 SCREW(6X16) |
09136-06017-000 |
from US $0.80 |
||
|
16
|
16
17981-09F00-000
HOSE,RESERVOIR TANK INLET
L:600->00 |
17981-09F00-000 |
— | ||
|
17
|
17
09401-08411-000 CLIPClip; |
09401-08411-000 |
from US $0.91 |
||
|
18
|
18
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Clamp, overflow hose no.1; |
09407-14403-000 |
from US $2.08 |
||
|
19
|
19
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp, overflow hose no.2; |
09407-18402-000 |
from US $1.98 |
||
|
20
|
20
17982-09F00-000 HOSE,RSVR TANK OVER FLOWHose, overflow L:600->00 |
17982-09F00-000 |
US $13.62 |
||
|
21
|
21
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Clamp, inlet hose; |
09407-14403-000 |
from US $2.08 |
||
