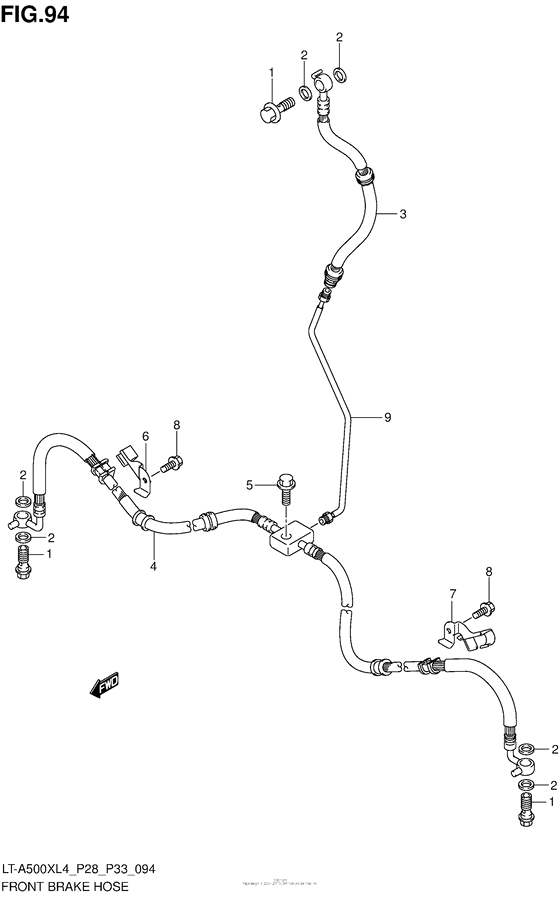

Front Brake Hose Diagram Suzuki LT-A500 KingQuad 500AXi
- Model code
- LT-A500X L4
- Engine Capacity
- 493
- Year
- 2014
- Sales region
- USA/Canada (P3/P28/P33)
- Model
- KingQuad 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09360-10062-000 UNIONBolt, upper |
09360-10062-000 |
from US $4.64 |
||
|
2
|
2
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
|
3
|
3
59480-31G40-000
HOSE,FR BRAKE NO.1
|
59480-31G40-000 |
— | ||
|
4
|
4
59240-31G50-000 HOSE,FR BRAKE NO.2 |
59240-31G50-000 |
from US $84.44 |
||
|
5
|
5
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
6
|
6
59261-31G00-000 CLAMP,FR BRAKE HOSE NO.2,R |
59261-31G00-000 |
US $6.04 |
||
|
7
|
7
59271-31G00-000 CLAMP,FR BRAKE HOSE NO.2,L |
59271-31G00-000 |
from US $6.04 |
||
|
8
|
8
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
9
|
9
59250-31G00-000 PIPE,FR BRAKE |
59250-31G00-000 |
from US $10.67 |
