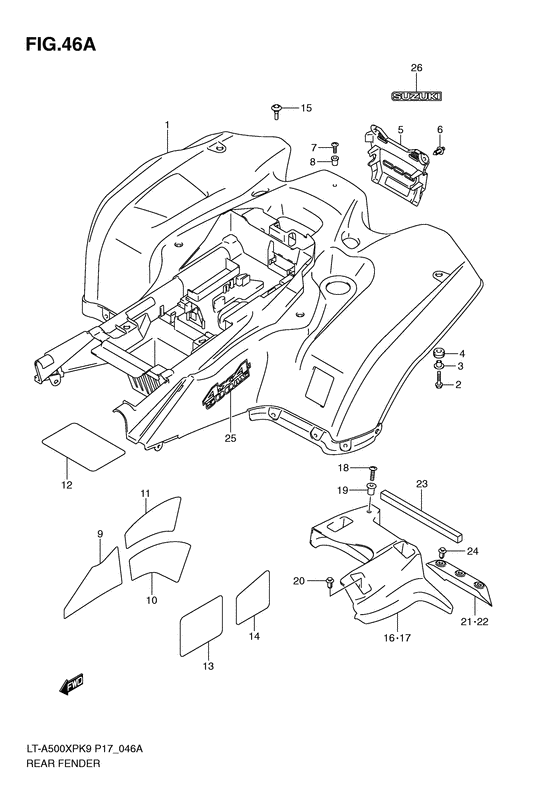

Rear fender (Model l0) Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L0
- Engine Capacity
- 493
- Year
- 2010
- Sales region
- Sweden/Australia (P17/P24)
- Frame
- 5SAAM45P*A710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-31G11-YT9
FENDER,RR
Fender, rear (red); |
63111-31G11-YT9 |
— | ||
| replacement | |||||
|
1
|
1
63111-31G13-YT9 FENDER,REARFender, rear (red); |
63111-31G13-YT9 |
from US $459.08 |
||
|
1
|
1
63111-31G11-YLG
Fender, rear (green)
Fender, rear (green); |
63111-31G11-YLG |
— | ||
| replacement | |||||
|
1
|
1
63111-31G13-YLG FENDER,REARFender, rear (green); |
63111-31G13-YLG |
from US $366.49 |
||
|
1
|
1
63111-31G11-YPW
FENDER,RR
Fender, rear (blue); |
63111-31G11-YPW |
— | ||
|
1
|
1
63111-31G40-YVA
Fender,rear
Fender, rear (camouflage); Lt-a500xp p17 |
63111-31G40-YVA |
— | ||
| replacements | |||||
|
1
|
1
63111-31G42-YVA
FENDER,REAR
Fender, rear (camouflage); Lt-a500xp p17 |
63111-31G42-YVA |
— | ||
|
1
|
1
63111-31G41-YVA
FENDER,RR
Fender, rear (camouflage); Lt-a500xp p17 |
63111-31G41-YVA |
— | ||
|
2
|
2
01547-0625A-000 BOLTBolt, fr brake hose no.2 Bolt, side; |
01547-0625A-000 |
from US $0.91 |
||
|
3
|
3
09169-06074-000 WASHERWasher |
09169-06074-000 |
from US $2.74 |
||
|
4
|
4
09320-11021-000 CUSHION |
09320-11021-000 |
from US $1.34 |
||
|
5
|
5
63251-31G00-000 COVER,RR |
63251-31G00-000 |
from US $14.53 |
||
|
6
|
6
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
7
|
7
02142-0520B-000 SCREWScrew, rear Screw, rear; |
02142-0520B-000 |
from US $0.76 |
||
|
8
|
8
09159-05019-000 NUT |
09159-05019-000 |
from US $2.28 |
||
|
9
|
9
63122-31G10-000 SHIELD,RR FENDER |
63122-31G10-000 |
from US $21.46 |
||
| replacement | |||||
|
9
|
9
63122-31G20-000 SHIELD,REAR FENDER |
63122-31G20-000 |
from US $30.89 |
||
|
10
|
10
63123-31G10-000 SHIELD,RR FENDER |
63123-31G10-000 |
from US $18.73 |
||
| replacement | |||||
|
10
|
10
63123-31G20-000 SHIELD,REAR FENDER |
63123-31G20-000 |
from US $26.93 |
||
|
11
|
11
63124-31G10-000 SHIELD,RR FENDER |
63124-31G10-000 |
from US $13.81 |
||
| replacement | |||||
|
11
|
11
63124-31G20-000 SHIELD,REAR FENDER |
63124-31G20-000 |
from US $19.87 |
||
|
12
|
12
63128-31G10-000
SHIELD,RR FENDER
|
63128-31G10-000 |
— | ||
| replacement | |||||
|
12
|
12
63128-31G20-000
SHIELD,REAR FENDER
|
63128-31G20-000 |
— | ||
|
13
|
13
63126-31G10-000 SHIELD,RR FENDER |
63126-31G10-000 |
from US $10.36 |
||
| replacement | |||||
|
13
|
13
63126-31G20-000 SHIELD,REAR FENDER |
63126-31G20-000 |
from US $14.89 |
||
|
14
|
14
63127-31G10-000 SHIELD,RR FENDER |
63127-31G10-000 |
from US $10.36 |
||
| replacement | |||||
|
14
|
14
63127-31G20-000 SHIELD,REAR FENDER |
63127-31G20-000 |
from US $14.89 |
||
|
15
|
15
93115-03G00-000 PLUG,RR BOXPlug Plug; |
93115-03G00-000 |
US $6 |
||
|
16
|
16
63351-31G20-291
MUDGUARD,RR FENDER,R
Mudguard, rear rh (black); P24 |
63351-31G20-291 |
— | ||
|
16
|
16
63351-31G30-291
MUDGUARD,RR FENDER,R
Mudguard, rear rh (black); P17 |
63351-31G30-291 |
— | ||
|
17
|
17
63361-31G20-291
MUDGUARD,RR FENDER,L
Mudguard, rear lh (black); P24 |
63361-31G20-291 |
— | ||
|
17
|
17
63361-31G30-291
MUDGUARD,RR FENDER,L
Mudguard, rear lh (black); P17 |
63361-31G30-291 |
— | ||
|
18
|
18
02142-0525B-000 SCREWScrew, rear Screw, rear; |
02142-0525B-000 |
from US $3.69 |
||
|
19
|
19
09159-05045-000 NUTNut; |
09159-05045-000 |
from US $2.89 |
||
|
20
|
20
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
|
21
|
21
63352-31G00-000 EXTENSION,RR FENDER MUDGUARD,RExtension, rh; |
63352-31G00-000 |
US $15.09 |
||
|
22
|
22
63362-31G00-000 EXTENSION,RR FENDER MUDGUARD,L |
63362-31G00-000 |
US $15.09 |
||
|
23
|
23
92143-31G00-000 CUSHION,MUDGUARD |
92143-31G00-000 |
US $2.43 |
||
|
24
|
24
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
|
25
|
25
68171-31G70-GZF
Emblem,rear fender
|
68171-31G70-GZF |
— | ||
| replacements | |||||
|
25
|
25
68171-31GF0-JLJ
EMBLEM,RR FENDER
|
68171-31GF0-JLJ |
— | ||
|
25
|
25
68171-31GF1-JLJ Emblem,rr Fender |
68171-31GF1-JLJ |
from US $15.09 |
||
|
26
|
26
68171-31G50-YPF
Emblem, rear (silver)
Emblem, rear (gray); |
68171-31G50-YPF |
— | ||
| replacements | |||||
|
26
|
26
68171-31GA0-1ZZ
EMBLEM,SUZUKI
Emblem, rear (gray); |
68171-31GA0-1ZZ |
— | ||
|
26
|
26
68171-31GA1-1ZZ Emblem,"suzuki"Emblem, rear (gray); |
68171-31GA1-1ZZ |
from US $3.90 |
||
