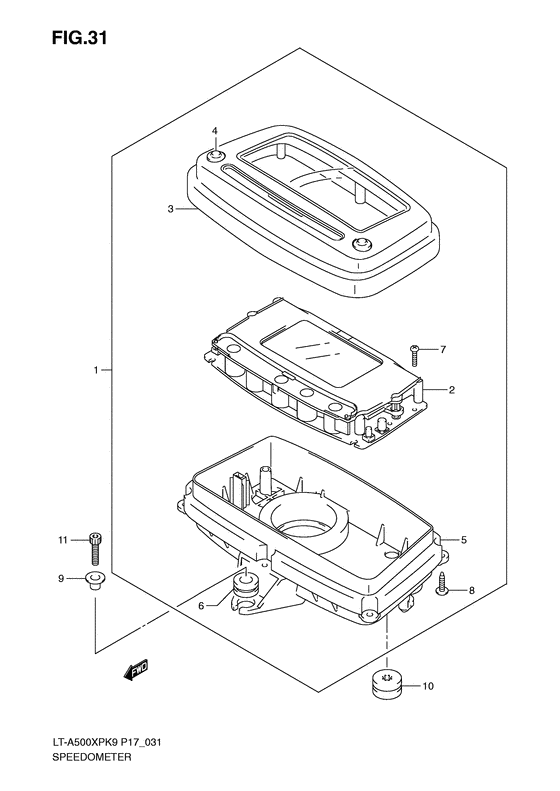

Speedometer Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L0
- Engine Capacity
- 493
- Year
- 2010
- Sales region
- Sweden/Australia (P17/P24)
- Frame
- 5SAAM45P*A710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-11H70-000
SPEEDOMETER ASSY
P17 |
34100-11H70-000 |
— | ||
|
1
|
1
34100-11H50-000
SPEEDOMETER ASSY
P24 |
34100-11H50-000 |
— | ||
|
2
|
2
34120-11H70-000
Speedometer
P17 |
34120-11H70-000 |
— | ||
|
2
|
2
34120-11H50-000
Speedometer
P24 |
34120-11H50-000 |
— | ||
|
3
|
3
34150-31G30-000 CASE,UPR |
34150-31G30-000 |
US $74.07 |
||
|
4
|
4
34124-31G30-000 SWITCH RUBBER |
34124-31G30-000 |
from US $10.52 |
||
| replacement | |||||
|
4
|
4
34124-03GE0-000 SWITCH,RUBBERSwitch rubber |
34124-03GE0-000 |
US $69.92 |
||
|
5
|
5
34111-31G30-000
CASE,LWR
|
34111-31G30-000 |
— | ||
|
6
|
6
34995-31G30-000
CUSHION,RUBBER
|
34995-31G30-000 |
— | ||
|
7
|
7
34147-31G30-000 SCREW(3X10)Screw (3x10); |
34147-31G30-000 |
from US $2.79 |
||
|
8
|
8
34149-31G30-000
SCREW(3X12)
Screw (3x12); |
34149-31G30-000 |
— | ||
|
9
|
9
34187-47F00-000 SPACER,SPEEDOMETERSpacer, speedometer Spacer, speedometer; |
34187-47F00-000 |
from US $4.32 |
||
|
10
|
10
34955-13E00-000
CUSHION
Cushion, meter no.1; |
34955-13E00-000 |
— | ||
| replacement | |||||
|
10
|
10
34955-13E01-000 Cushion,speedometerCushion, meter no.1; |
34955-13E01-000 |
from US $2.82 |
||
|
11
|
11
07130-0520B-000 BoltBolt, speedometer Bolt, speedometer; |
07130-0520B-000 |
from US $4 |
||
