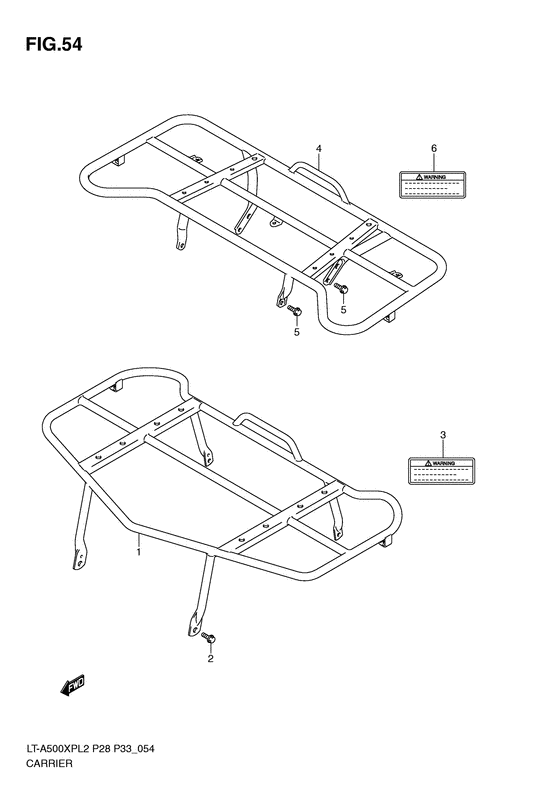

Carrier (Lt-a500xpl2 p33) Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L2
- Engine Capacity
- 493
- Year
- 2012
- Sales region
- USA/Canada/California (P3/P28/P33)
- Frame
- 5SAAM45P*C710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46410-31G13-YSN CARRIER,FRCarrier, front (black); |
46410-31G13-YSN |
from US $310.96 |
||
|
2
|
2
09103-08283-000
BOLT(8X16)
Bolt (8x16); |
09103-08283-000 |
— | ||
| replacements | |||||
|
2
|
2
09103-08283-A05
BOLT(8X16)
Bolt (8x16); |
09103-08283-A05 |
— | ||
|
2
|
2
09103-08570-000 Bolt,front GripBolt (8x16); |
09103-08570-000 |
from US $3.69 |
||
|
3
|
3
68381-31G00-000 LABEL,CARRIER WARNINGLabel, front carrier; |
68381-31G00-000 |
from US $5.08 |
||
|
4
|
4
46310-31GB2-YSN CARRIER,RRCarrier, rear (black); |
46310-31GB2-YSN |
from US $354.91 |
||
|
5
|
5
09103-08283-000
BOLT(8X16)
Bolt (8x16); |
09103-08283-000 |
— | ||
| replacements | |||||
|
5
|
5
09103-08283-A05
BOLT(8X16)
Bolt (8x16); |
09103-08283-A05 |
— | ||
|
5
|
5
09103-08570-000 Bolt,front GripBolt (8x16); |
09103-08570-000 |
from US $3.69 |
||
|
6
|
6
68381-31G10-000 LABEL,CARRIER WARNINGLabel, rear carrier; |
68381-31G10-000 |
from US $5.08 |
||
