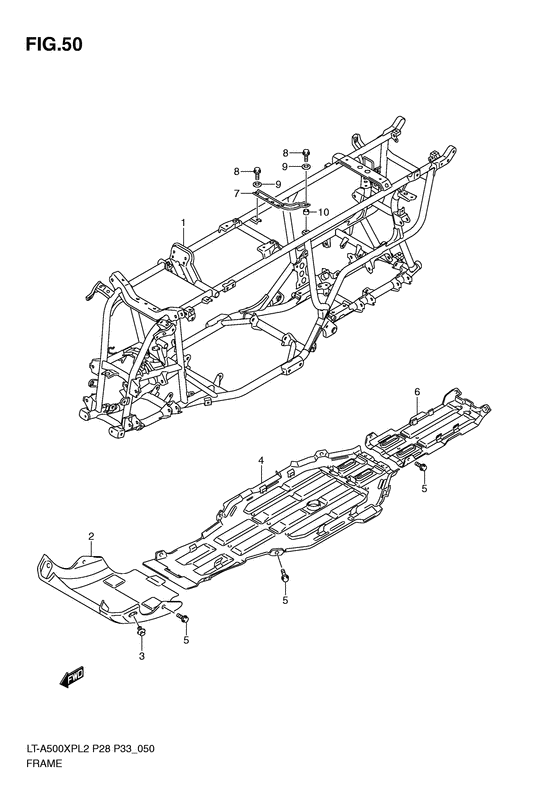

Frame Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L2
- Engine Capacity
- 493
- Year
- 2012
- Sales region
- USA/Canada/California (P3/P28/P33)
- Frame
- 5SAAM45P*C710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-31H03-019
FRAME(BLACK)
Frame (black); |
41100-31H03-019 |
— | ||
|
2
|
2
42521-31G00-291 PROTECTOR,FRProtector, front (black); |
42521-31G00-291 |
US $84.85 |
||
|
3
|
3
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
|
4
|
4
42511-31G02-000
PROTECTOR,ENGINE
|
42511-31G02-000 |
— | ||
| replacement | |||||
|
4
|
4
42511-31G04-000 Protector,engine |
42511-31G04-000 |
from US $62.08 |
||
|
5
|
5
09111-06085-000 BOLT(6X12)Bolt (6x12); |
09111-06085-000 |
from US $2.40 |
||
|
6
|
6
42531-31G01-000 PROTECTOR,RR |
42531-31G01-000 |
US $39.57 |
||
| replacement | |||||
|
6
|
6
42531-31G01-291 PROTECTOR, REAR |
42531-31G01-291 |
US $43.03 |
||
|
7
|
7
41561-31GB0-000 PLATE,BATTERY |
41561-31GB0-000 |
from US $17.52 |
||
| replacement | |||||
|
7
|
7
41561-31G01-000
PLATE,BATTERY
|
41561-31G01-000 |
— | ||
|
8
|
8
09103-06283-000 BOLT(6X16)Bolt (6x16); Rh |
09103-06283-000 |
from US $4.37 |
||
|
9
|
9
09160-06109-000 WASHER(6.5X18X1.6)Washer (6.5x18x1.6); |
09160-06109-000 |
from US $0.80 |
||
|
10
|
10
41562-31GB0-000
SPACER,BATTERY PLATE,L
Spacer, lh; |
41562-31GB0-000 |
— | ||
| replacement | |||||
|
10
|
10
41561-31G01-000
PLATE,BATTERY
Spacer, lh; |
41561-31G01-000 |
— | ||
