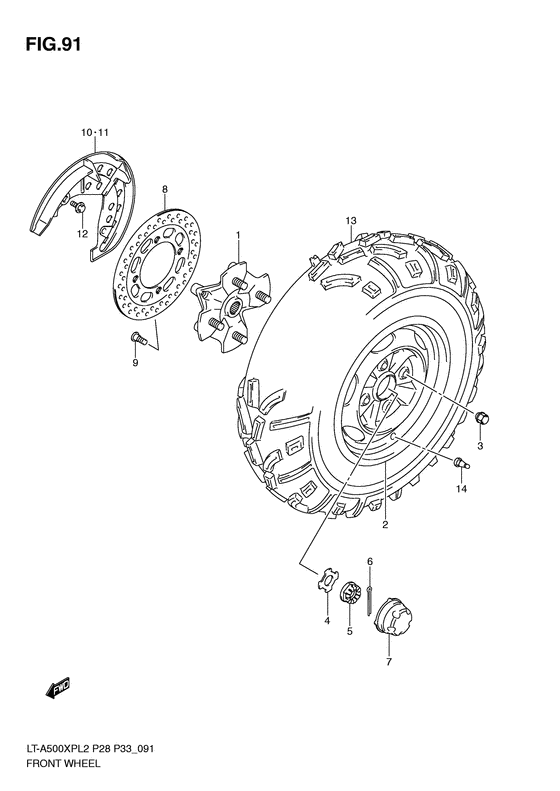

Front wheel (Lt-a500xpzl2 p33) Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L2
- Engine Capacity
- 493
- Year
- 2012
- Sales region
- USA/Canada/California (P3/P28/P33)
- Frame
- 5SAAM45P*C710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54110-31G00-000 HUB,FR WHEEL |
54110-31G00-000 |
from US $91.68 |
||
|
2
|
2
55310-31G20-YSR
RIM,FR WHEEL(12X6.0AT)
Rim, front wheel (12x6.0at) (black); |
55310-31G20-YSR |
— | ||
| replacement | |||||
|
2
|
2
55310-31G60-291 RIM,FR WHEEL(12X6.0AT)Rim, front wheel (12x6.0at) (black); |
55310-31G60-291 |
from US $303.94 |
||
|
2
|
2
55310-31G60-291 RIM,FR WHEEL(12X6.0AT)Rim, front wheel (12x6.0at) (black); |
55310-31G60-291 |
from US $303.94 |
||
|
3
|
3
09159-10114-000 NUT |
09159-10114-000 |
from US $4.48 |
||
|
4
|
4
64723-09F00-000 WASHER,HUBWasher, hub; |
64723-09F00-000 |
from US $6.51 |
||
|
5
|
5
09141-18010-000 NUT |
09141-18010-000 |
from US $13.63 |
||
|
6
|
6
04111-4035A-000 PINPin, cotter |
04111-4035A-000 |
from US $2.18 |
||
|
7
|
7
54725-09F01-000 CAP,WHEEL CTR |
54725-09F01-000 |
US $13.43 |
||
|
8
|
8
59211-31G20-000 DISC,FR BRAKE |
59211-31G20-000 |
from US $48.74 |
||
|
9
|
9
09106-08160-000 BOLT(8X21)Bolt, brake disc Bolt (8x21); |
09106-08160-000 |
from US $1.67 |
||
|
10
|
10
59231-31G10-000 COVER,FR DISC,R |
59231-31G10-000 |
US $23.61 |
||
|
11
|
11
59431-31G10-000 COVER,FR DISC,L |
59431-31G10-000 |
US $23.17 |
||
|
12
|
12
09111-06085-000 BOLT(6X12)Bolt (6x12); |
09111-06085-000 |
from US $2.40 |
||
|
13
|
13
55110-31G20-000 TIRE,FRTire, front (at25x8-12); |
55110-31G20-000 |
from US $240.78 |
||
|
14
|
14
43130-24A00-000 VALVE ASSY, WHEEL RIM(TR412)Valve assy, wheel rim (tr412) Valve assy, wheel rim (tr412); |
43130-24A00-000 |
from US $4.41 |
||
