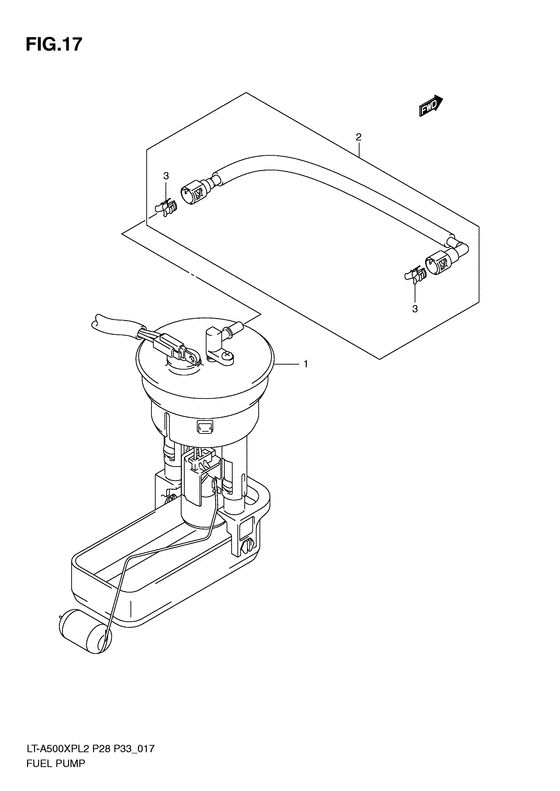

Fuel Pump Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L2
- Engine Capacity
- 493
- Year
- 2012
- Sales region
- USA/Canada/California (P3/P28/P33)
- Frame
- 5SAAM45P*C710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-31G21-000
Pump assy,fuel
|
15100-31G21-000 |
— | ||
| replacements | |||||
|
1
|
1
15100-31G30-000
PUMP ASSY,FUEL
|
15100-31G30-000 |
— | ||
|
1
|
1
15100-31G31-000 Pump Assy,fuel |
15100-31G31-000 |
US $541.06 |
||
|
2
|
2
15810-31G01-000
HOSE,FUEL
|
15810-31G01-000 |
— | ||
| replacements | |||||
|
2
|
2
15810-31G02-000
HOSE,FUEL
|
15810-31G02-000 |
— | ||
|
2
|
2
15810-31G03-000 Hose Comp,fuel |
15810-31G03-000 |
US $49.66 |
||
|
3
|
3
15815-35F00-000 RETAINER |
15815-35F00-000 |
from US $3.04 |
||
