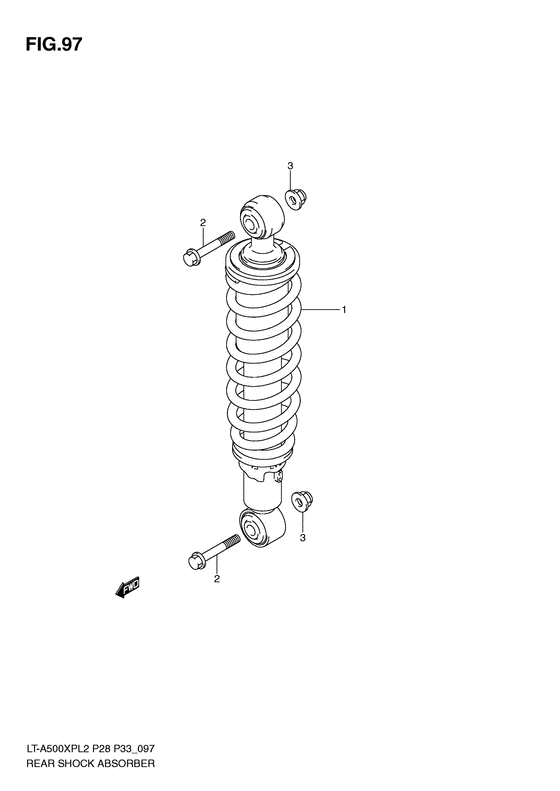

Rear shock absorber Diagram Suzuki LT-A500 KingQuad 500AXi Power Steering
- Model code
- LT-A500XP L2
- Engine Capacity
- 493
- Year
- 2012
- Sales region
- USA/Canada/California (P3/P28/P33)
- Frame
- 5SAAM45P*C710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62100-31G40-019 ABSORBER ASSY,RR SHOCKAbsorber assy, rear shock (black); |
62100-31G40-019 |
from US $257.23 |
||
|
2
|
2
09103-10385-000 BOLT(10X48)Bolt (10x48); |
09103-10385-000 |
from US $9.45 |
||
|
3
|
3
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
