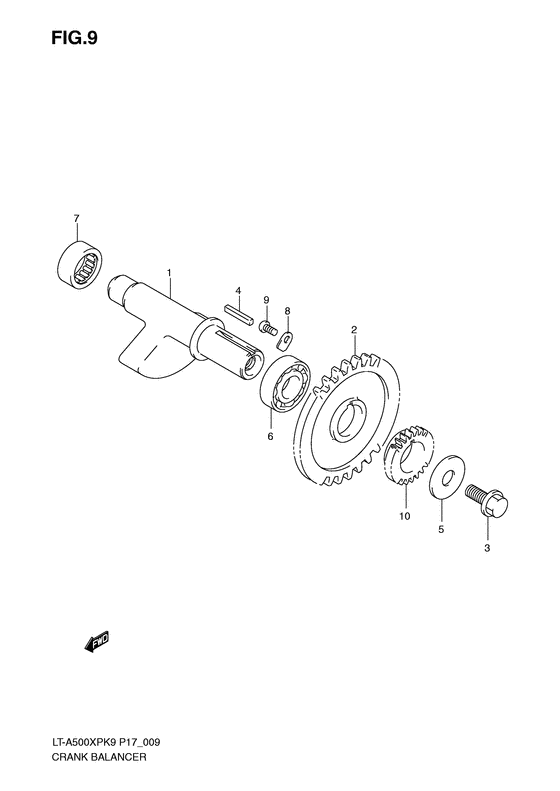

Crank balancer Diagram Suzuki LT-A500 KingQuad 500AXi LE Power Steering
- Model code
- LT-A500XPZ K9
- Engine Capacity
- 493
- Year
- 2009
- Sales region
- Sweden/Australia (P17/P24)
- Frame
- 5SAAM45P*9710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12650-11H00-000 BALANCER,CRANK |
12650-11H00-000 |
from US $93.47 |
||
|
2
|
2
12666-11H00-000 GEAR,CRANK BALANCER DRIVEN |
12666-11H00-000 |
from US $75.81 |
||
|
3
|
3
09103-10290-000 BOLT(10X20)Bolt, oil pump drive gear Bolt, 10x20; |
09103-10290-000 |
from US $1.76 |
||
|
4
|
4
09421-04004-000 KEY |
09421-04004-000 |
from US $6.38 |
||
|
5
|
5
08211-10305-000 WASHERWasher, oil pump drive gear |
08211-10305-000 |
from US $5.78 |
||
|
6
|
6
09262-20137-000 BEARING(20X42X12)Bearing, 20x42x12; |
09262-20137-000 |
from US $20.24 |
||
|
7
|
7
09263-20091-000 BEARING(20X28X16)Bearing, 20x28x16; |
09263-20091-000 |
from US $26.50 |
||
|
8
|
8
24741-21A00-000 RETAINERRetainer, crank gal brg; |
24741-21A00-000 |
from US $1.60 |
||
|
9
|
9
09125-06110-000 BOLT(6X12)Screw, retainer (6x12) Bolt, 6x12; |
09125-06110-000 |
from US $1.52 |
||
|
10
|
10
16321-11H00-000 GEAR,OIL PUMP DRIVE |
16321-11H00-000 |
US $28.52 |
