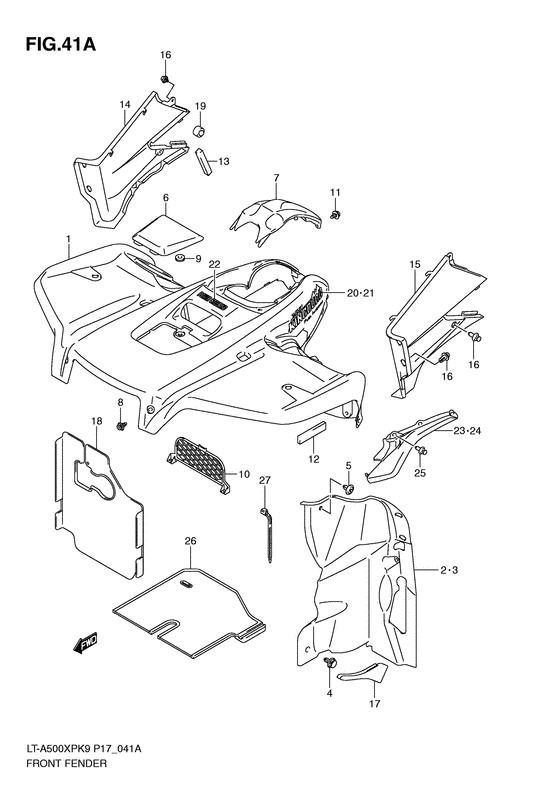

Front fender (Model l0) Diagram Suzuki LT-A500 KingQuad 500AXi LE Power Steering
- Model code
- LT-A500XPZ K9
- Engine Capacity
- 493
- Year
- 2009
- Sales region
- Sweden/Australia (P17/P24)
- Frame
- 5SAAM45P*9710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-31G12-YT9
Fender,front
Fender, front (red); |
53111-31G12-YT9 |
— | ||
| replacement | |||||
|
1
|
1
53111-31G13-YT9 FENDER,FRFender, front (red); |
53111-31G13-YT9 |
from US $552.64 |
||
|
1
|
1
53111-31G12-YPW
FENDER,FR
Fender, front (blue); |
53111-31G12-YPW |
— | ||
|
1
|
1
53111-31G12-YLG
FENDER,FR
Fender, front (green); |
53111-31G12-YLG |
— | ||
| replacement | |||||
|
1
|
1
53111-31G13-YLG FENDER,FRFender, front (green); |
53111-31G13-YLG |
from US $281.26 |
||
|
1
|
1
53111-31G40-YVA
Fender,front
Fender, front (camouflage); Lt-a500xp p17 |
53111-31G40-YVA |
— | ||
| replacement | |||||
|
1
|
1
53111-31G41-YVA FENDER,FRFender, front (camouflage); Lt-a500xp p17 |
53111-31G41-YVA |
from US $672.30 |
||
|
2
|
2
53411-31G02-000 MUDFLAP,FENDER INNER,RMudflap, inner rh; |
53411-31G02-000 |
US $41.94 |
||
|
3
|
3
53421-31G01-000 MUDFLAP,FENDER INNER,LMudflap, inner lh; |
53421-31G01-000 |
from US $28.28 |
||
| replacement | |||||
|
3
|
3
53421-31G03-000 Mudflap,fender Inner,lMudflap, inner lh; |
53421-31G03-000 |
US $31.52 |
||
|
4
|
4
09409-08335-000 CLIPClip, lower; |
09409-08335-000 |
from US $1.87 |
||
|
5
|
5
09409-07333-000 CLIPClip, inner Clip, upper; |
09409-07333-000 |
from US $1.22 |
||
|
6
|
6
53341-31G00-YT9 LID,FR FENDERLid (red); |
53341-31G00-YT9 |
from US $14.58 |
||
| replacements | |||||
|
6
|
6
53341-31G03-YT9
LID,FENDER FRONT
Lid (red); |
53341-31G03-YT9 |
— | ||
|
6
|
6
53341-31G04-YT9 Lid,fender FrontLid (red); |
53341-31G04-YT9 |
US $46 |
||
|
6
|
6
53341-31G00-YPW
LID,FENDER FR
Lid (blue); |
53341-31G00-YPW |
— | ||
| replacements | |||||
|
6
|
6
53341-31G03-YPW
New Genuine Part
Lid (blue); |
53341-31G03-YPW |
— | ||
|
6
|
6
53341-31G04-YPW
Lid,fender Front
Lid (blue); |
53341-31G04-YPW |
— | ||
|
6
|
6
53341-31G00-YLG LID,FENDER FRLid (green); |
53341-31G00-YLG |
US $14.39 |
||
| replacements | |||||
|
6
|
6
53341-31G03-YLG
LID,FENDER FRONT
Lid (green); |
53341-31G03-YLG |
— | ||
|
6
|
6
53341-31G04-YLG Lid,fender FrontLid (green); |
53341-31G04-YLG |
US $11.85 |
||
|
6
|
6
53341-31GC0-YVA
Lid (camouflage)
Lid (camouflage); Lt-a500xp p17 |
53341-31GC0-YVA |
— | ||
| replacements | |||||
|
6
|
6
53341-31GC3-YVA
New Genuine Part
Lid (camouflage); Lt-a500xp p17 |
53341-31GC3-YVA |
— | ||
|
6
|
6
53341-31GC1-YVA
LID,FENDER FR
Lid (camouflage); Lt-a500xp p17 |
53341-31GC1-YVA |
— | ||
|
6
|
6
53341-31GC4-YVA
Lid,fender Front
Lid (camouflage); Lt-a500xp p17 |
53341-31GC4-YVA |
— | ||
|
7
|
7
53119-31G01-YT9
Fender,center
Fender, center (red); |
53119-31G01-YT9 |
— | ||
| replacement | |||||
|
7
|
7
53119-31G02-YT9 FENDER,CTRFender, center (red); |
53119-31G02-YT9 |
from US $27.07 |
||
|
7
|
7
53119-31G01-YPW
FENDER,CTR
Fender, center (blue); |
53119-31G01-YPW |
— | ||
| replacement | |||||
|
7
|
7
53119-31G02-YPW
FENDER,CTR
Fender, center (blue); |
53119-31G02-YPW |
— | ||
|
7
|
7
53119-31G01-YLG
FENDER,CTR
Fender, center (green); |
53119-31G01-YLG |
— | ||
| replacements | |||||
|
7
|
7
53119-31G02-YLG
FENDER,CTR
Fender, center (green); |
53119-31G02-YLG |
— | ||
|
7
|
7
53119-31G03-YLG
Fender,ctr
Fender, center (green); |
53119-31G03-YLG |
— | ||
|
7
|
7
53119-31GC1-YVA
Fender,center
Fender, center (camouflage); Lt-a500xp p17 |
53119-31GC1-YVA |
— | ||
| replacement | |||||
|
7
|
7
53119-31GC2-YVA
FENDER,CTR
Fender, center (camouflage); Lt-a500xp p17 |
53119-31GC2-YVA |
— | ||
|
8
|
8
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
|
9
|
9
09320-08018-000 CUSHIONCushion, lh |
09320-08018-000 |
from US $1.40 |
||
|
10
|
10
53212-31G00-000
Cover, inner
|
53212-31G00-000 |
— | ||
| replacement | |||||
|
10
|
10
53212-31G01-000
COVER,INNER
|
53212-31G01-000 |
— | ||
|
11
|
11
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
|
12
|
12
53145-07G01-000 CUSHIONCushion, fender side Cushion, fender side; |
53145-07G01-000 |
from US $6.15 |
||
|
13
|
13
53113-31H00-000 CUSHION,COVER SIDE |
53113-31H00-000 |
from US $6.96 |
||
|
14
|
14
53110-31G10-291
Cover,side,r(black)
Cover, side rh (black); |
53110-31G10-291 |
— | ||
| replacements | |||||
|
14
|
14
53112-31G02-000
COVER,SIDE,R
Cover, side rh (black); |
53112-31G02-000 |
— | ||
|
14
|
14
53112-31G03-000
COVER,SIDE,R
Cover, side rh (black); |
53112-31G03-000 |
— | ||
|
15
|
15
53110-31G20-291
Cover,side,l(black)
Cover, side lh (black); |
53110-31G20-291 |
— | ||
| replacements | |||||
|
15
|
15
53122-31G02-000
COVER,SIDE L
Cover, side lh (black); |
53122-31G02-000 |
— | ||
|
15
|
15
53122-31G03-000 COVER,SIDE LCover, side lh (black); |
53122-31G03-000 |
US $107.12 |
||
|
16
|
16
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
|
17
|
17
53116-31G00-000
MUDGUARD,SIDE,R
|
53116-31G00-000 |
— | ||
| replacement | |||||
|
17
|
17
53116-31G01-000 Mudguard,side,r |
53116-31G01-000 |
US $17.75 |
||
|
18
|
18
53117-31G00-000
COVER,CTR
|
53117-31G00-000 |
— | ||
| replacement | |||||
|
18
|
18
53117-31G01-000 Cover,ctr |
53117-31G01-000 |
US $34.54 |
||
|
19
|
19
09321-10019-000 CUSHION |
09321-10019-000 |
from US $2.28 |
||
|
20
|
20
68151-31G50-ETA
Emblem, rh
|
68151-31G50-ETA |
— | ||
| replacements | |||||
|
20
|
20
68151-31GC0-EFG
EMBLEM,FR FENDER,R
|
68151-31GC0-EFG |
— | ||
|
20
|
20
68151-31GC1-EFG Emblem,fr Fender,r |
68151-31GC1-EFG |
from US $26.86 |
||
|
21
|
21
68152-31G50-ETA
Emblem, lh
|
68152-31G50-ETA |
— | ||
| replacements | |||||
|
21
|
21
68152-31GC0-EFG
EMBLEM,FR FENDER,L
|
68152-31GC0-EFG |
— | ||
|
21
|
21
68152-31GC1-EFG Emblem,fr Fender,l |
68152-31GC1-EFG |
from US $26.86 |
||
|
22
|
22
68151-31G20-FVT
Emblem,"power-steering"
|
68151-31G20-FVT |
— | ||
| replacements | |||||
|
22
|
22
68151-31GD0-CT5
EMBLEM,POWER-STEERING
|
68151-31GD0-CT5 |
— | ||
|
22
|
22
68151-31GD1-CT5 Emblem,"power-Steering" |
68151-31GD1-CT5 |
from US $11.22 |
||
|
23
|
23
53331-31G10-291 MUDGUARD,FR FENDER,RMudguard, front rh (black); |
53331-31G10-291 |
US $33.12 |
||
|
24
|
24
53332-31G10-291
MUDGUARD,FR FENDER,L
Mudguard, front lh (black); |
53332-31G10-291 |
— | ||
|
25
|
25
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
|
26
|
26
53113-31G01-000 GUARD,RADIATORP24 |
53113-31G01-000 |
US $41.95 |
||
|
27
|
27
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap P24 |
09407-14403-000 |
from US $2.08 |
||
