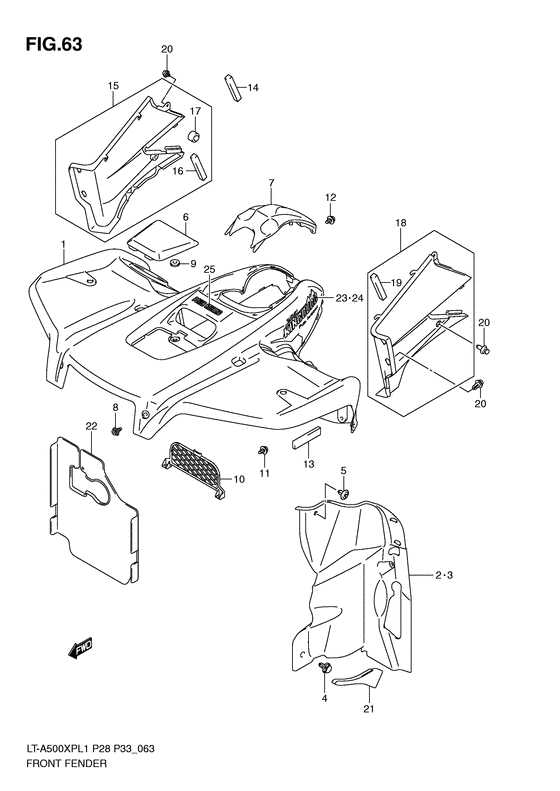

Front fender (Lt-a500xpl1 p33) Diagram Suzuki LT-A500 KingQuad 500AXi LE Power Steering
- Model code
- LT-A500XPZ L1
- Engine Capacity
- 493
- Year
- 2011
- Sales region
- USA/Canada/California (P3/P28/P33)
- Frame
- 5SAAM45P*B710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-31G02-YT9
Fender,front
Fender, front (red); |
53111-31G02-YT9 |
— | ||
| replacement | |||||
|
1
|
1
53111-31G03-YT9 Fender, front - redFender, front (red); |
53111-31G03-YT9 |
US $461.53 |
||
|
1
|
1
53111-31G02-YLG
Fender,front
Fender, front (green); |
53111-31G02-YLG |
— | ||
| replacement | |||||
|
1
|
1
53111-31G03-YLG Fender, front - greenFender, front (green); |
53111-31G03-YLG |
US $356.66 |
||
|
2
|
2
53411-31G02-000 MUDFLAP,FENDER INNER,RMudflap, inner rh; |
53411-31G02-000 |
US $41.94 |
||
|
3
|
3
53421-31G01-000 MUDFLAP,FENDER INNER,LMudflap, inner lh; |
53421-31G01-000 |
from US $28.28 |
||
| replacement | |||||
|
3
|
3
53421-31G03-000 Mudflap,fender Inner,lMudflap, inner lh; |
53421-31G03-000 |
US $31.52 |
||
|
4
|
4
09409-08335-000 CLIPLower |
09409-08335-000 |
from US $1.87 |
||
|
5
|
5
09409-07333-000 CLIPClip, inner Upper |
09409-07333-000 |
from US $1.22 |
||
|
6
|
6
53341-31G00-YT9 LID,FR FENDERLid (red); |
53341-31G00-YT9 |
from US $14.58 |
||
| replacements | |||||
|
6
|
6
53341-31G03-YT9
LID,FENDER FRONT
Lid (red); |
53341-31G03-YT9 |
— | ||
|
6
|
6
53341-31G04-YT9 Lid,fender FrontLid (red); |
53341-31G04-YT9 |
US $46 |
||
|
6
|
6
53341-31G00-YLG LID,FENDER FRLid (green); |
53341-31G00-YLG |
US $14.39 |
||
| replacements | |||||
|
6
|
6
53341-31G03-YLG
LID,FENDER FRONT
Lid (green); |
53341-31G03-YLG |
— | ||
|
6
|
6
53341-31G04-YLG Lid,fender FrontLid (green); |
53341-31G04-YLG |
US $11.85 |
||
|
7
|
7
53119-31G01-YT9
Fender,center
Fender, center (red); |
53119-31G01-YT9 |
— | ||
| replacement | |||||
|
7
|
7
53119-31G02-YT9 FENDER,CTRFender, center (red); |
53119-31G02-YT9 |
from US $27.07 |
||
|
7
|
7
53119-31G01-YLG
FENDER,CTR
Fender, center (green); |
53119-31G01-YLG |
— | ||
| replacements | |||||
|
7
|
7
53119-31G02-YLG
FENDER,CTR
Fender, center (green); |
53119-31G02-YLG |
— | ||
|
7
|
7
53119-31G03-YLG
Fender,ctr
Fender, center (green); |
53119-31G03-YLG |
— | ||
|
8
|
8
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
|
9
|
9
09320-08018-000 CUSHIONCushion, lh |
09320-08018-000 |
from US $1.40 |
||
|
10
|
10
53212-31G00-000
Cover, inner
|
53212-31G00-000 |
— | ||
| replacement | |||||
|
10
|
10
53212-31G01-000
COVER,INNER
|
53212-31G01-000 |
— | ||
|
11
|
11
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
|
12
|
12
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
|
13
|
13
53145-07G01-000 CUSHIONCushion, fender side Cushion, fender side; |
53145-07G01-000 |
from US $6.15 |
||
|
14
|
14
53113-31H00-000 CUSHION,COVER SIDE |
53113-31H00-000 |
from US $6.96 |
||
|
15
|
15
53110-31G10-291
Cover,side,r(black)
Cover, side rh (black); |
53110-31G10-291 |
— | ||
| replacements | |||||
|
15
|
15
53112-31G02-000
COVER,SIDE,R
Cover, side rh (black); |
53112-31G02-000 |
— | ||
|
15
|
15
53112-31G03-000
COVER,SIDE,R
Cover, side rh (black); |
53112-31G03-000 |
— | ||
|
16
|
16
53146-05G00-000 CUSHION,FR FENDER SIDECushion, side Cushion, cover side rh; |
53146-05G00-000 |
from US $3.53 |
||
|
17
|
17
09321-10019-000 CUSHIONRh |
09321-10019-000 |
from US $2.28 |
||
|
18
|
18
53110-31G20-291
Cover,side,l(black)
Cover, side lh (black); |
53110-31G20-291 |
— | ||
| replacements | |||||
|
18
|
18
53122-31G02-000
COVER,SIDE L
Cover, side lh (black); |
53122-31G02-000 |
— | ||
|
18
|
18
53122-31G03-000 COVER,SIDE LCover, side lh (black); |
53122-31G03-000 |
US $107.12 |
||
|
19
|
19
53146-05G00-000 CUSHION,FR FENDER SIDECushion, side Cushion, cover side lh; |
53146-05G00-000 |
from US $3.53 |
||
|
20
|
20
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
|
21
|
21
53116-31G00-000
MUDGUARD,SIDE,R
|
53116-31G00-000 |
— | ||
| replacement | |||||
|
21
|
21
53116-31G01-000 Mudguard,side,r |
53116-31G01-000 |
US $17.75 |
||
|
22
|
22
53117-31G00-000
COVER,CTR
|
53117-31G00-000 |
— | ||
| replacement | |||||
|
22
|
22
53117-31G01-000 Cover,ctr |
53117-31G01-000 |
US $34.54 |
||
|
23
|
23
68151-31GC0-EFG
EMBLEM,FR FENDER,R
Emblem, rh; |
68151-31GC0-EFG |
— | ||
| replacement | |||||
|
23
|
23
68151-31GC1-EFG Emblem,fr Fender,rEmblem, rh; |
68151-31GC1-EFG |
from US $26.86 |
||
|
24
|
24
68152-31GC0-EFG
EMBLEM,FR FENDER,L
Emblem, lh; |
68152-31GC0-EFG |
— | ||
| replacement | |||||
|
24
|
24
68152-31GC1-EFG Emblem,fr Fender,lEmblem, lh; |
68152-31GC1-EFG |
from US $26.86 |
||
|
25
|
25
68151-31GD0-CT5
EMBLEM,POWER-STEERING
Emblem, "power-steering"; |
68151-31GD0-CT5 |
— | ||
| replacement | |||||
|
25
|
25
68151-31GD1-CT5 Emblem,"power-Steering"Emblem, "power-steering"; |
68151-31GD1-CT5 |
from US $11.22 |
||
