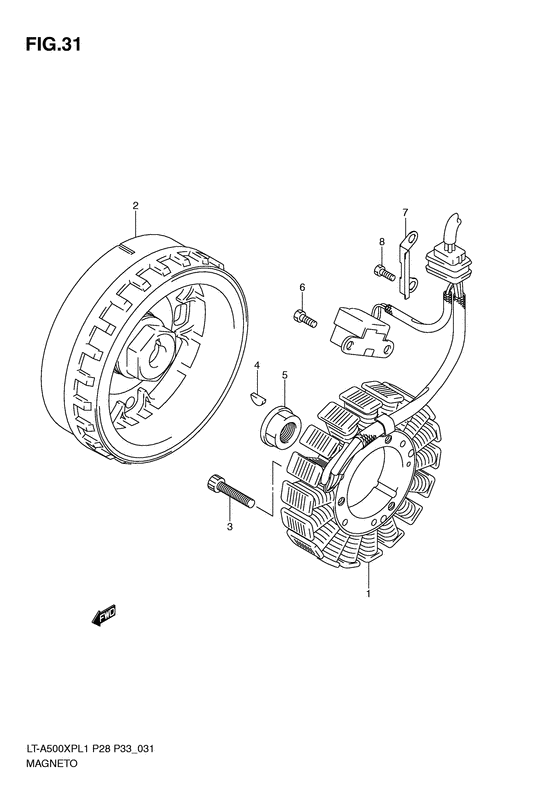

Magneto Diagram Suzuki LT-A500 KingQuad 500AXi LE Power Steering
- Model code
- LT-A500XPZ L1
- Engine Capacity
- 493
- Year
- 2011
- Sales region
- USA/Canada/California (P3/P28/P33)
- Frame
- 5SAAM45P*B710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32101-11H00-000
STATOR ASSY
|
32101-11H00-000 |
— | ||
| replacement | |||||
|
1
|
1
32101-11H01-000 Stator Assy |
32101-11H01-000 |
from US $520.96 |
||
|
2
|
2
32102-11H00-000 ROTOR ASSY |
32102-11H00-000 |
from US $464.64 |
||
|
3
|
3
07130-0635B-000 BOLTBolt, magneto stator |
07130-0635B-000 |
from US $0.91 |
||
|
4
|
4
08341-31059-000 KEYKey Key; |
08341-31059-000 |
from US $1.49 |
||
|
5
|
5
31792-11H00-000 NUT,MAGNETO ROTOR |
31792-11H00-000 |
from US $5.56 |
||
|
6
|
6
09100-05019-000 BOLT(5X10)Bolt, sensor (5x10) Bolt (5x10); |
09100-05019-000 |
from US $0.91 |
||
|
7
|
7
32371-11H00-000 CLAMP,MAGNETO LEAD |
32371-11H00-000 |
from US $2.56 |
||
|
8
|
8
09100-05019-000 BOLT(5X10)Bolt, sensor (5x10) Bolt (5x10); |
09100-05019-000 |
from US $0.91 |
||
