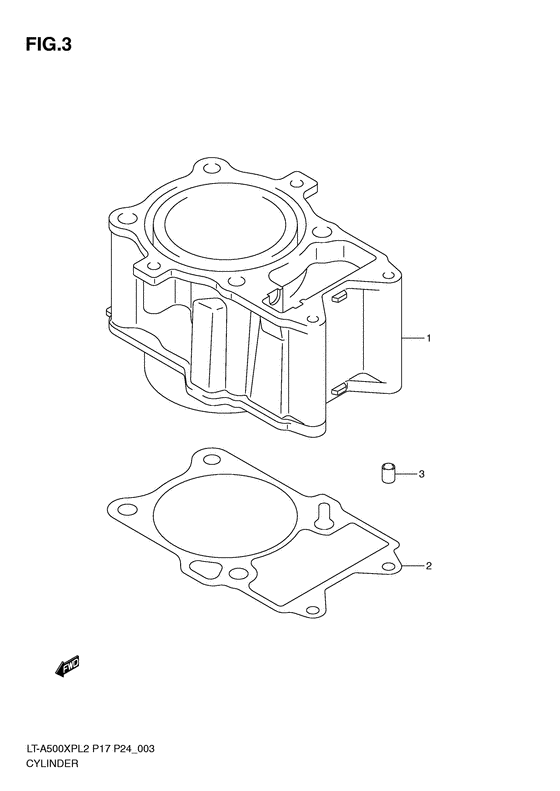

Cylinder Diagram Suzuki LT-A500 KingQuad 500AXi LE Power Steering
- Model code
- LT-A500XPZ L2
- Engine Capacity
- 493
- Year
- 2012
- Sales region
- Sweden/Australia (P17/P24)
- Frame
- 5SAAM45P*C710001~
- Power
- 45 hp
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11211-31H00-0F0 CYLINDER |
11211-31H00-0F0 |
US $1,008.35 |
||
|
2
|
2
11241-11H00-000 GASKET,CYLINDER |
11241-11H00-000 |
US $19.26 |
||
|
3
|
3
04211-13189-000 PINPin; |
04211-13189-000 |
from US $1.22 |
